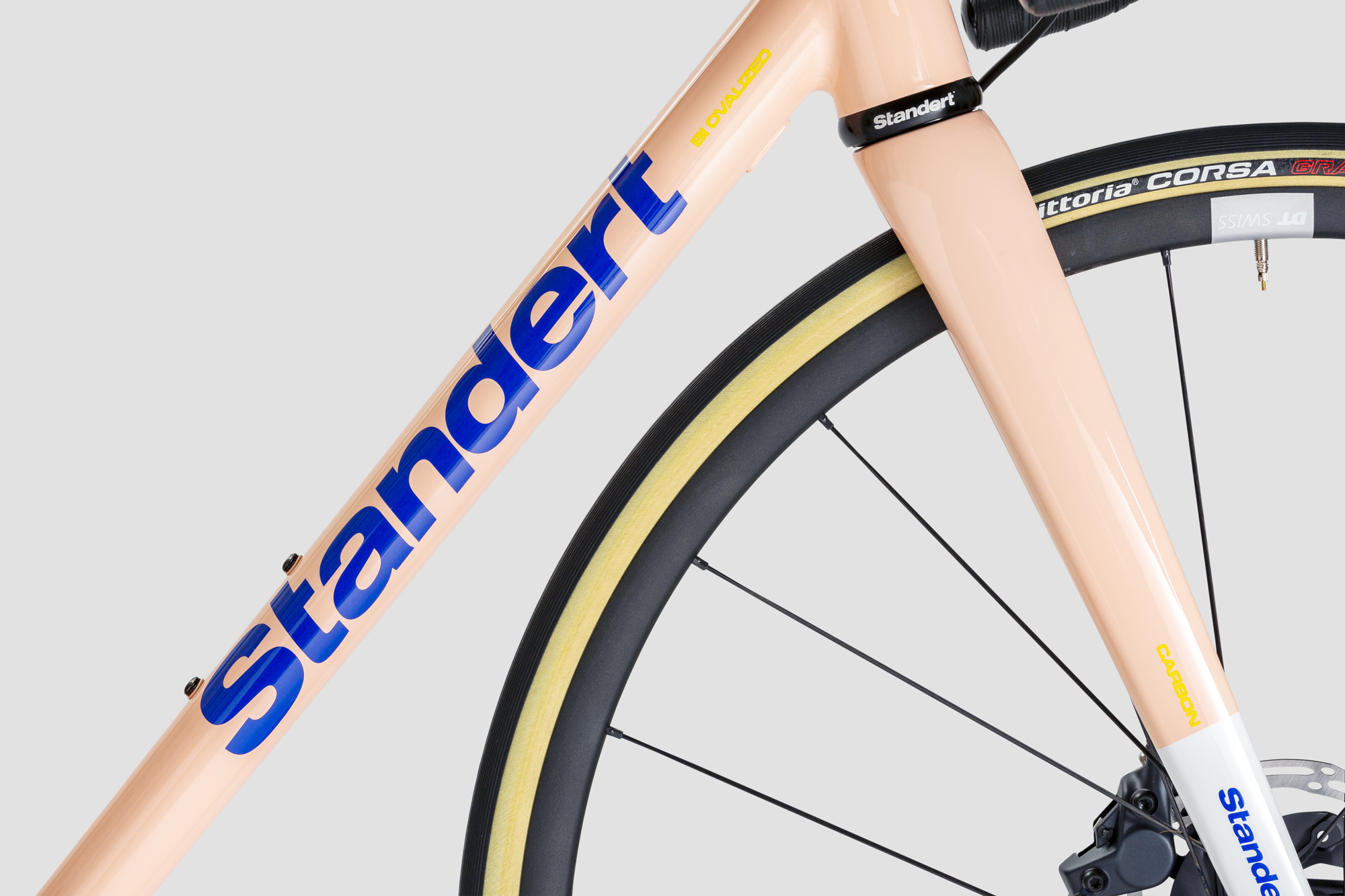

Kreissäge DISC | Paceline Peach Standert Kreissäge Disc Paceline Peach Aluminum Road Bike Standert Kreissäge Disc Paceline Peach Aluminium Road Bike
Home » Kreissäge » Standert Kreissäge Disc | Road Bike | Paceline Peach

Kreissäge DISC | Paceline Peach

from

3,699.00 EUR

price without VAT: 2,612.00 EUR

Color
Size
48 PC™
50 PC™
52 PC™
54
56
58
60
about Project Compact™
Geometry
Size guide
1: Select size
1: Size selected
2: Configure
2: Configured
3: Add to cart
3: Add to cart
Race-proven geometry designed for speed & control in every situation

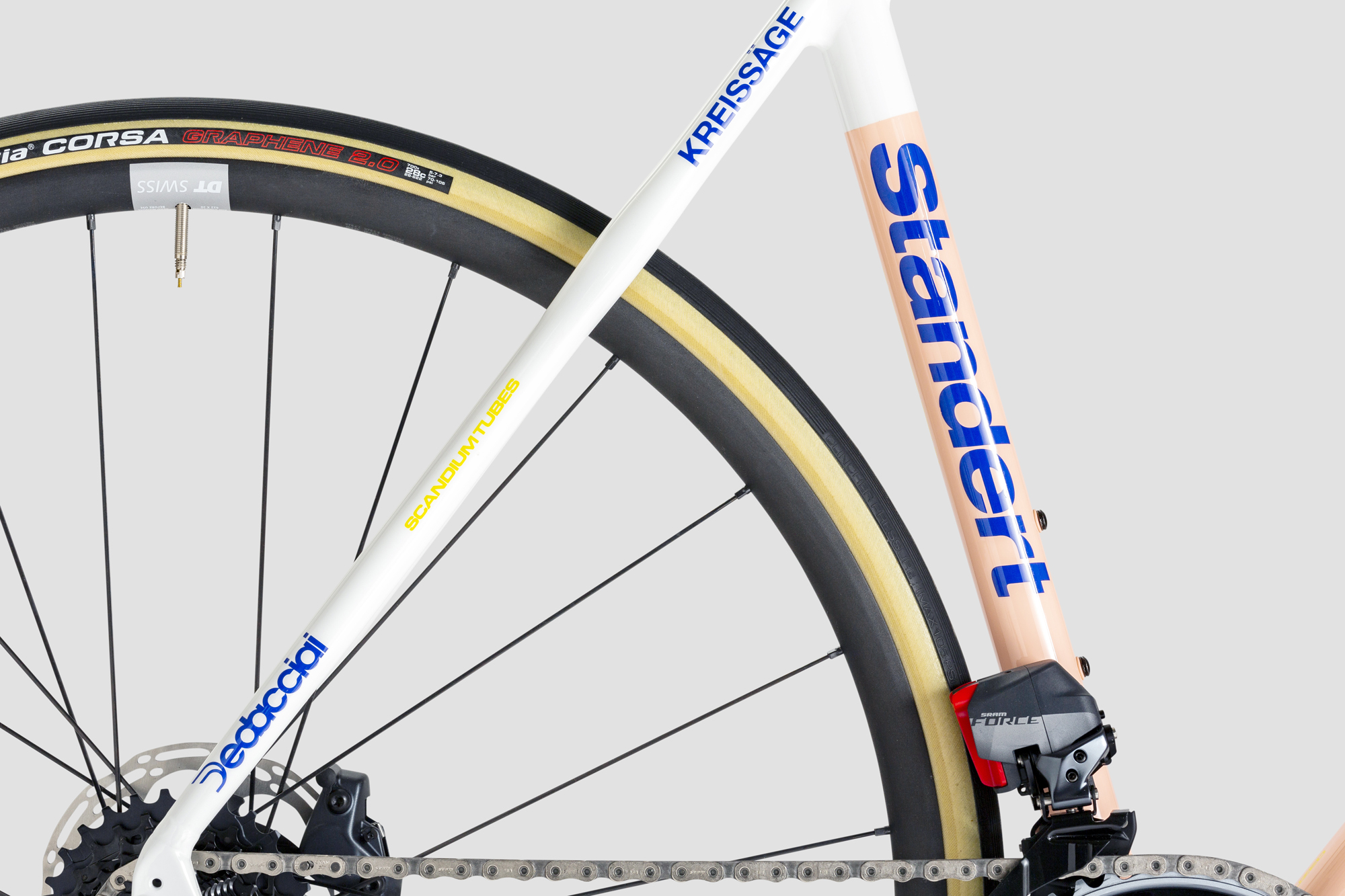

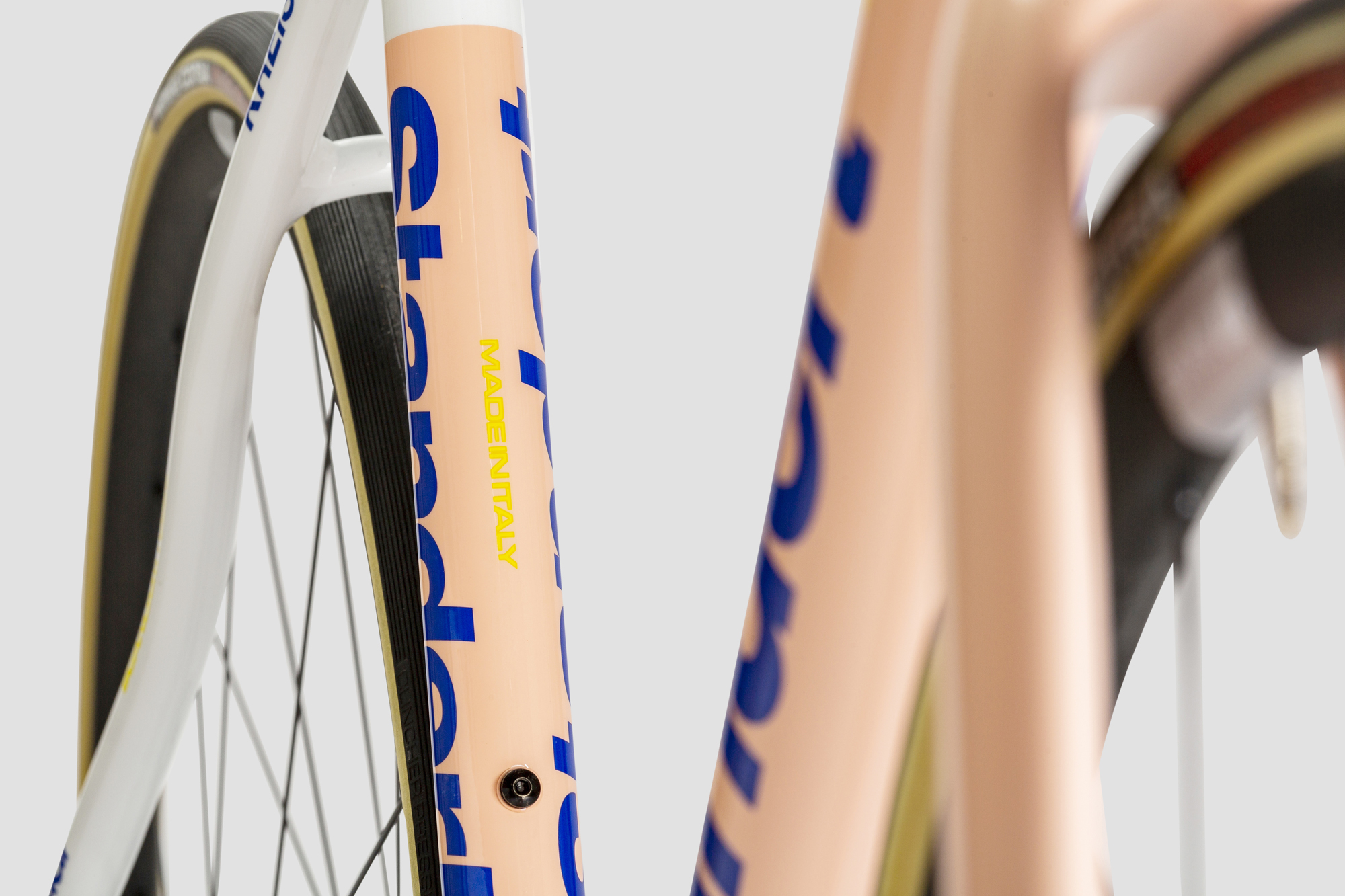

Dedacciai tubing built from lightweight scandium aluminum
Available in Rim or Disc brake configurations
Shipping
Reviews

Configure your Kreissäge DISC | Paceline Peach

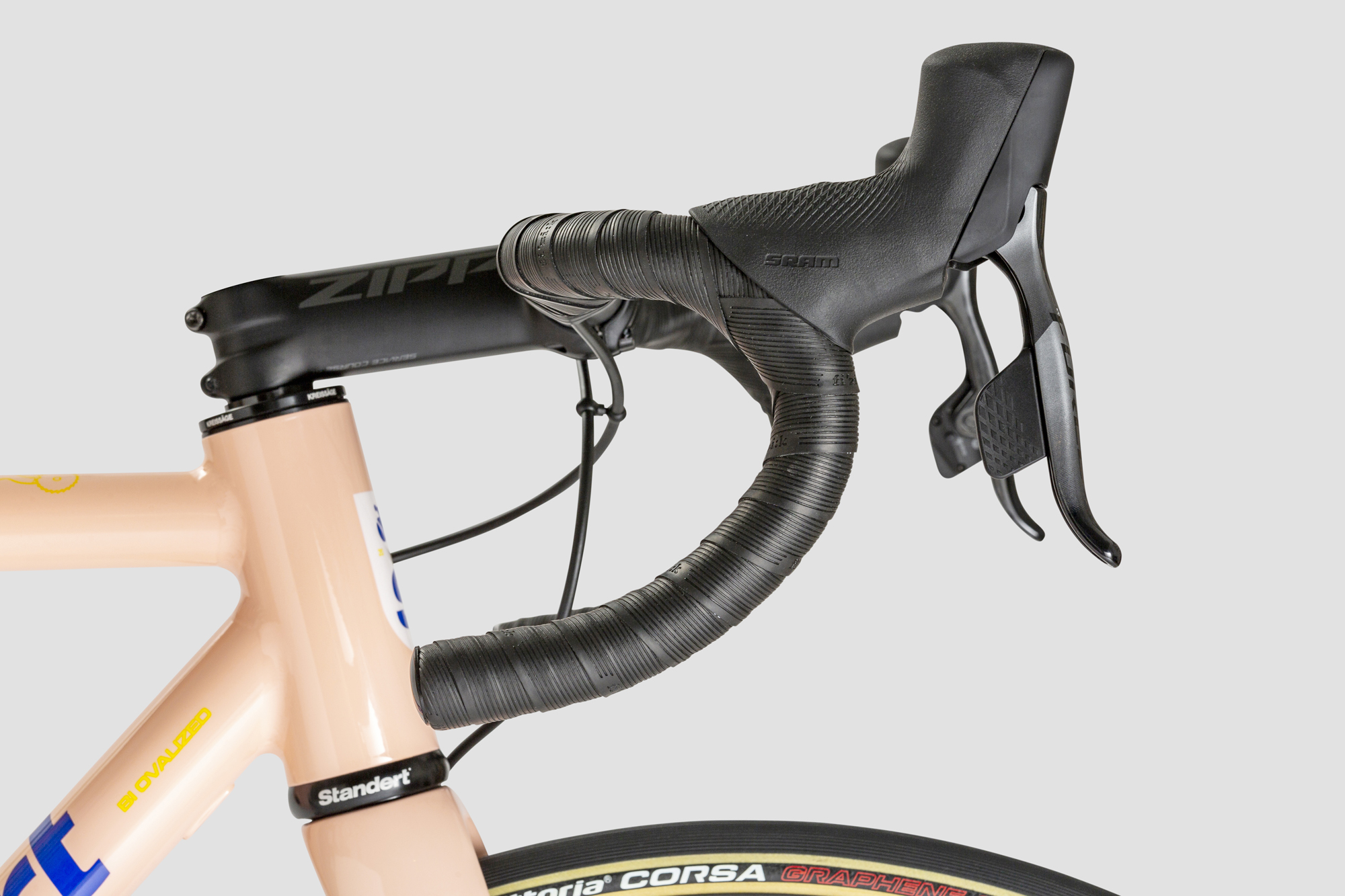

Brakeset Front
Sram Rival HRD
Shimano 105 Di2 R7170

Rotor Front
Sram Paceline 160mm
Shimano MT-CL800 160mm

Brakeset Rear
Sram Rival HRD
Shimano 105 Di2 R7170

Rotor Rear
Sram Paceline 140mm
Shimano MT-CL800 140mm

Derailleur Front
Sram Rival 22
Shimano 105 Di2 R7150

Derailleur Rear
Sram Rival 22
Shimano 105 Di2 R7150

Crankset
Sram Rival 22 5236
Shimano 105 R7100 5034

Cassette
Sram Rival XG 1130 1132
Shimamo R7100 1134

Chain
Sram Rival PC 1130
Shimano R7100

Weight
8.6 KG
8.2 KG

Stem
Zipp Service Course Silver or SL Beyond Black

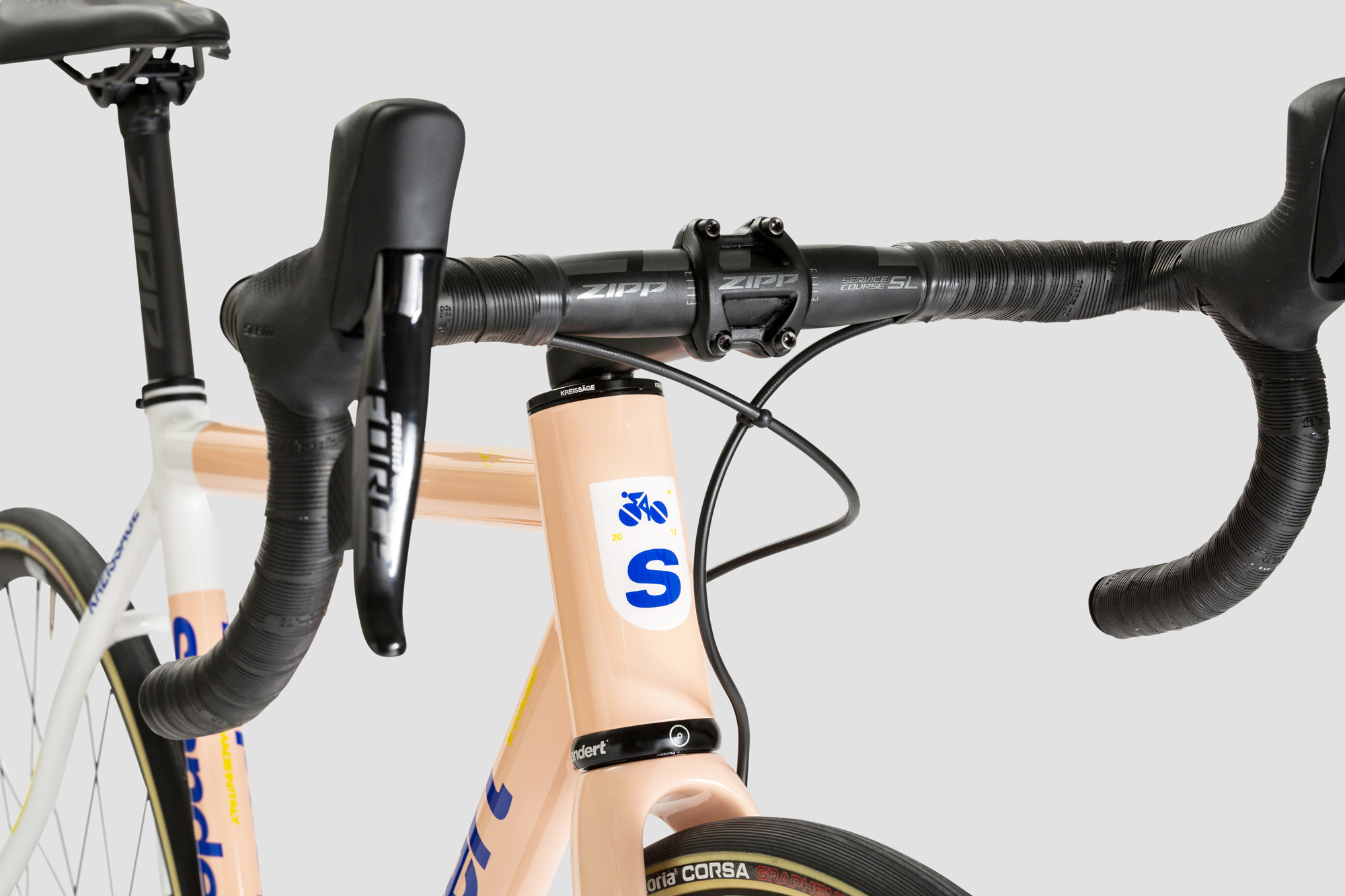

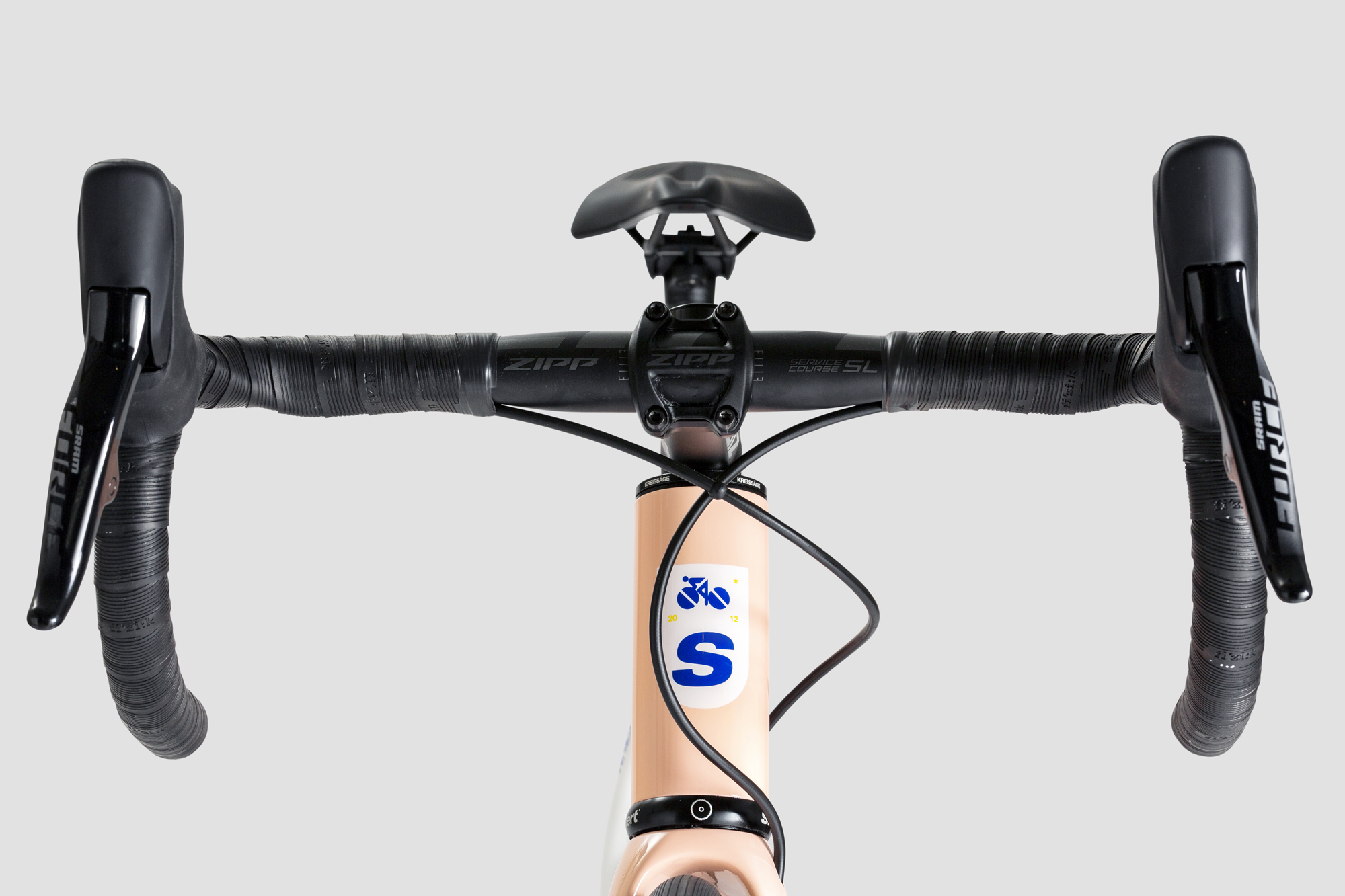

Handlebar
Zipp Service Course 80 Silver or SL-70 Ergo Beyond Black

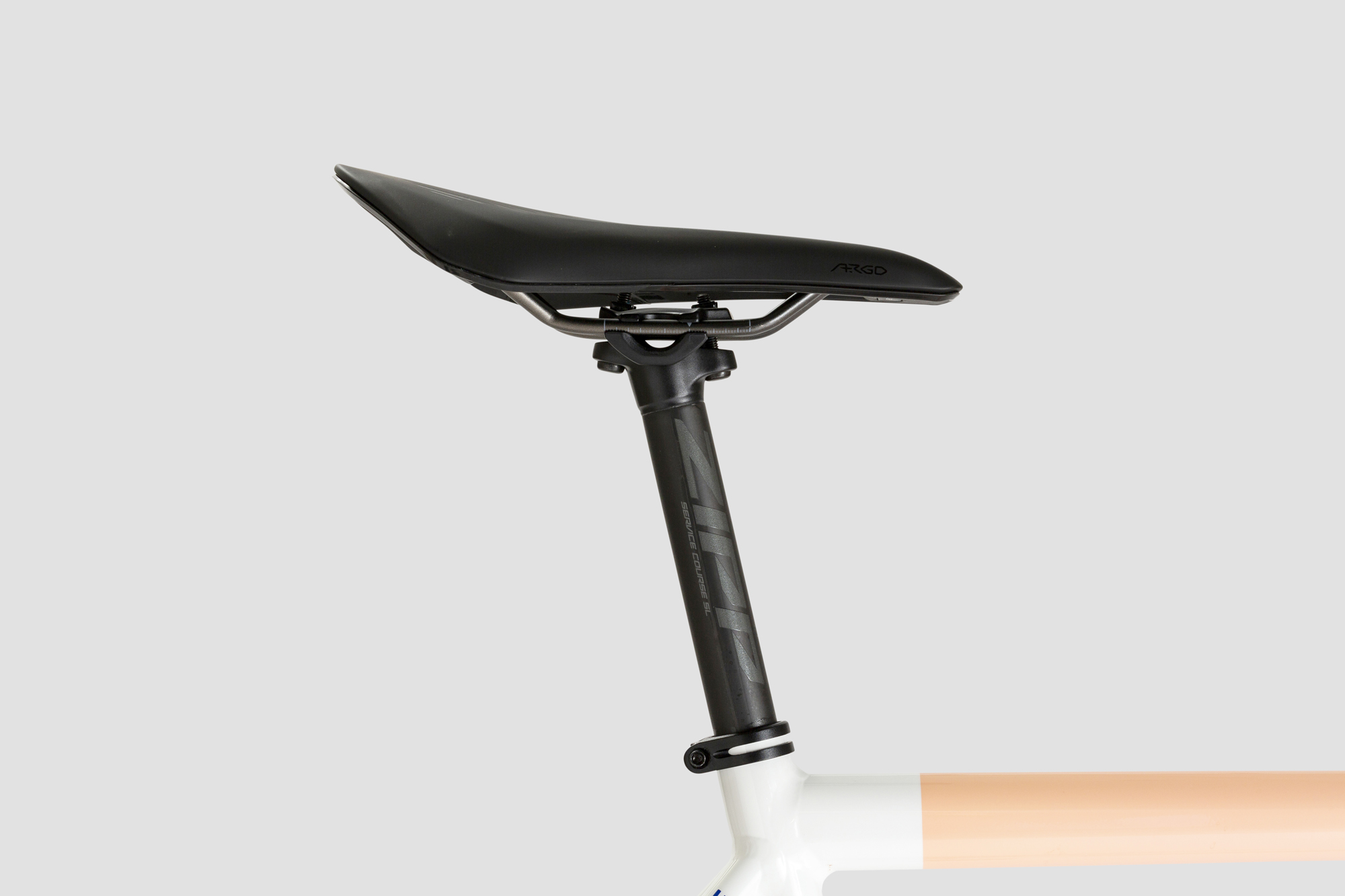

Seatpost
Zipp Service Course Silver or SL Carbon Beyond Black

Handlebar Tape
Fizik Vento

Frame
Standert Kreissäge Disc

Fork
Standert full carbon tapered 1 1/8"-1 1/2" flat mount

Max. Tire Clearance
700x30C

Recom. max. rider weight
95 kg

Headset
Standert ZS/EC

Bottom Bracket
First T47

Add-Ons

Price for current setup

Kreissäge DISC | Paceline Peach

Size
not set
Group
not set

3,699.00 EUR

price without VAT: 2,612.00 EUR

Complete bikes ship in 2-6 weeks depending on current work load.

Geometry

48 PC™
50 PC™
52 PC™
54
56
58
60
A
Seat Tube Length
480
490
500
530
550
571
586
B
Top Tube Length
495
512
525
544
555
570
586
C
Head Tube Length
110
115
120
130
145
166
181
D
Seat Tube Angle
76.5
76
75.5
74
73.5
73.5
73.5
E
Head Tube Angle
71.25
72.5
73
73
73.5
73.5
73.5
F
Stack
521
530
537
544
560
580
595
G
Reach
370
380
386
388
390
398
410
H
Chainstay Length
405
405
405
410
410
410
410
I
Wheelbase
969
970
974
984
986
1000
1016
J
Standover Height
741
745
758
778
794
816
830
K
Crankset
165
170
170
170
172.5
172.5
172.5
L
Stem
100
110
110
120
120
130
130
M
Handlebar Width
38
38
38
40
40
42
42
N
Seatpost
0
0
0
0
20
20
20

Size Guide

A
Body Height (cm)
B
Inseam (cm)
Frame Size
150
-
163
76
-
82
48 PC™
158
-
170
77
-
83
50 PC™
166
-
177
78
-
84
52 PC™
170
-
180
80
-
86
54
175
-
185
82
-
88
56
182
-
192
84
-
90
58
188
-
198
85
-
91
60
regular fit
race fit
regular fit
race fit
Shipping
Destination
Costs
€100
€190
€420
€590
€350
Custom Quote
Time
3–9 Weeks
3–9 Weeks
3–9 Weeks
3–9 Weeks
3–9 Weeks
3–9 Weeks
All in-stock and available products are subject to processing & shipping times stated here. Every frame is hand-prepared in our Berlin warehouse. All orders undergo careful preparation, including: facing & reaming bearing surfaces, chasing threads, installing small parts, and thorough quality control. We promise it’s worth the wait.
