Kreissäge RS | Analogue Edition

from

5,499.00 EUR

price without VAT: 3,883.00 EUR

Color
Size
48 PC™
50 PC™
52 PC™
54
56
58
60
about Project Compact™
Geometry
Size guide
The Kreissäge RS Analogue Edition - offline only.

Starting as a small, independent bike shop, we know how important it is to have that little special ingredient the big players in the online world don’t have. Having grown into an online business ourselves, we think it’s the time to give something back to the offline world and the local communities. This one's for you. The Kreissäge RS Analogue Edition will only be available offline, in-store. In our showroom in Berlin, CCACHE in Sydney, Cycle Project Store in Singapore, Bikescan in Seoul, Stand Collection in Taiwan, Blacksmith Cycle in Toronto and Radwerk Indo in Jakarta.
In-store only.
RS Analogue Edition Ultegra Di2 ready to pick up from 4 weeks. RS Analogue Edition & Red AXS ready to pick up from 6 weeks.
Italian made Dedacciai custom Scandium tubeset. Incredibly stiff, surprisingly comfortable.
Made in Italy by some of the best artisans in the business for road bike enthusiasts.
Custom Engineered Standert integrated headset for our signature 56mm headtube.
Optional CeramicSpeed SLT bearings. Removes the headache from integrated headsets.
Standert monocoque carbon fork; 45mm rake. 160mm max rotor clearance. 30mm max tire clearance (actual width).
Fully integrated cable routing.
Reviews

Configure your Kreissäge RS | Analogue Edition

Shift / Brake Levers
Sram Force eTap AXS
Shimano Ultegra Di2 R8170
Sram Red eTap AXS
Sram Red eTap AXS

Rotor Front
Sram Paceline 160mm
Shimano MT-800 160mm
Sram Centerline XR 160mm
Sram Centerline XR 160mm

Rotor Rear
Sram Paceline 140mm
Shimano MT-800 140mm
Sram Centerline XR 140mm
Sram Centerline XR 140mm

Derailleur Front
Sram Force eTap AXS
Shimano Ultegra Di2 R8150
Sram Red eTap AXS
Sram Red eTap AXS

Derailleur Rear
Sram Force eTap AXS
Shimano Ultegra Di2 R8150
Sram Red eTap AXS
Sram Red eTap AXS

Crankset
Sram Force AXS 4835
Shimano Ultegra R8100 5236
Sram Red AXS QUARQ 5037
Sram Red AXS QUARQ 5037

Cassette
Sram Force AXS 1028
Shimano Ultegra CS8100 1130
Sram Red AXS 1028
Sram Red AXS 1033

Chain
Sram Force AXS Flattop
Shimano Ultegra R8100
Sram Red AXS Flattop
Sram Red AXS Flattop

Weight
8.1 KG
8.1 KG
7.9KG

Frame
Standert Kreissäge RS

Fork
Standert full carbon integrated tapered 1 1/8"-1 1/2" flat mount

Headset
Standert Integrated

Bottom Bracket
Standert T47

Max. Tire Clearance
700x30C

Recom. max. rider weight
95 kg

Add-Ons

Price for current setup

Kreissäge RS | Analogue Edition

Size
not set
Group
not set

5,499.00 EUR

price without VAT: 3,883.00 EUR

In-store only. RS Analogue Edition Ultegra Di2 ready to pick up from 4 weeks. RS Analogue Edition & Red AXS ready to pick up from 6 weeks.

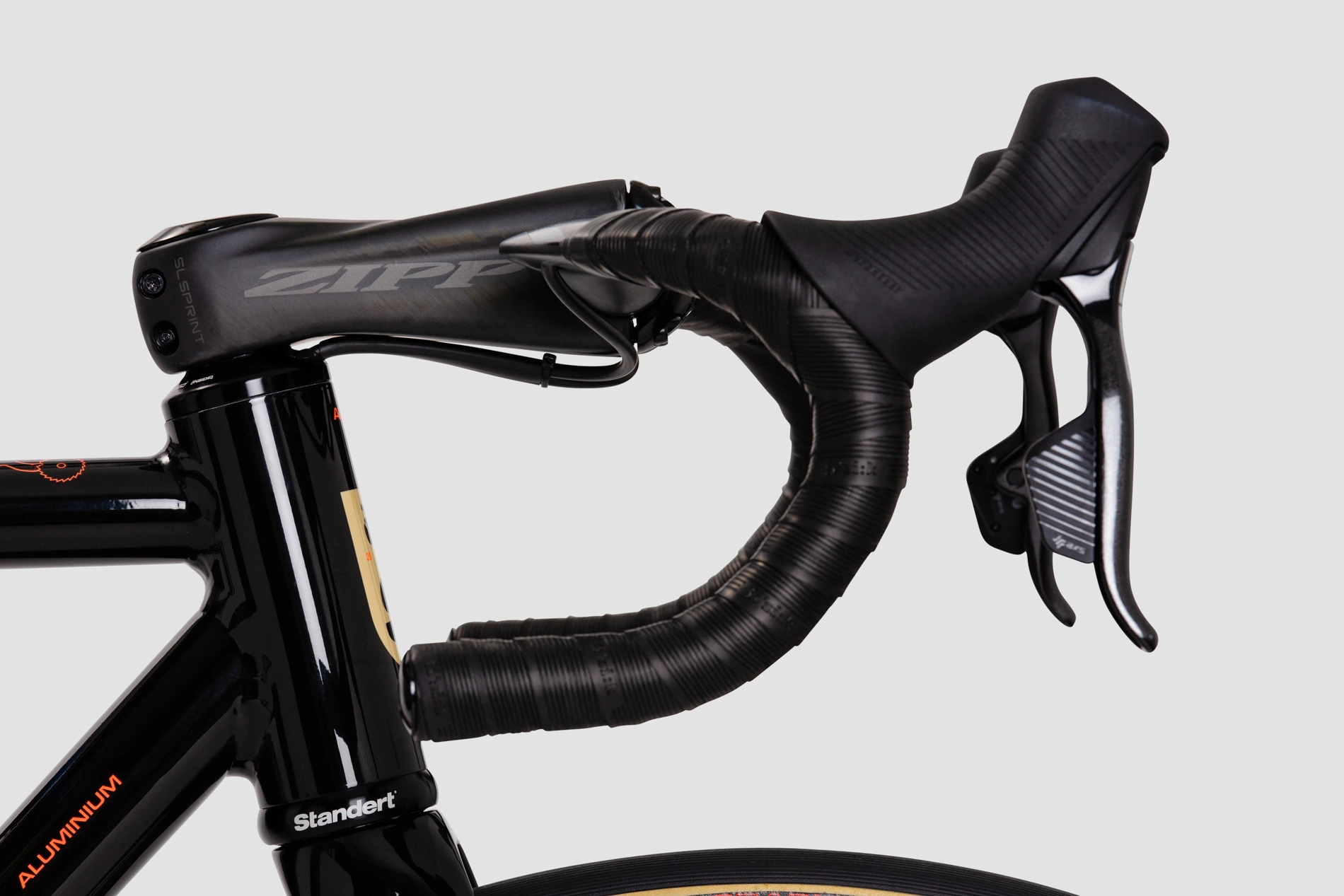

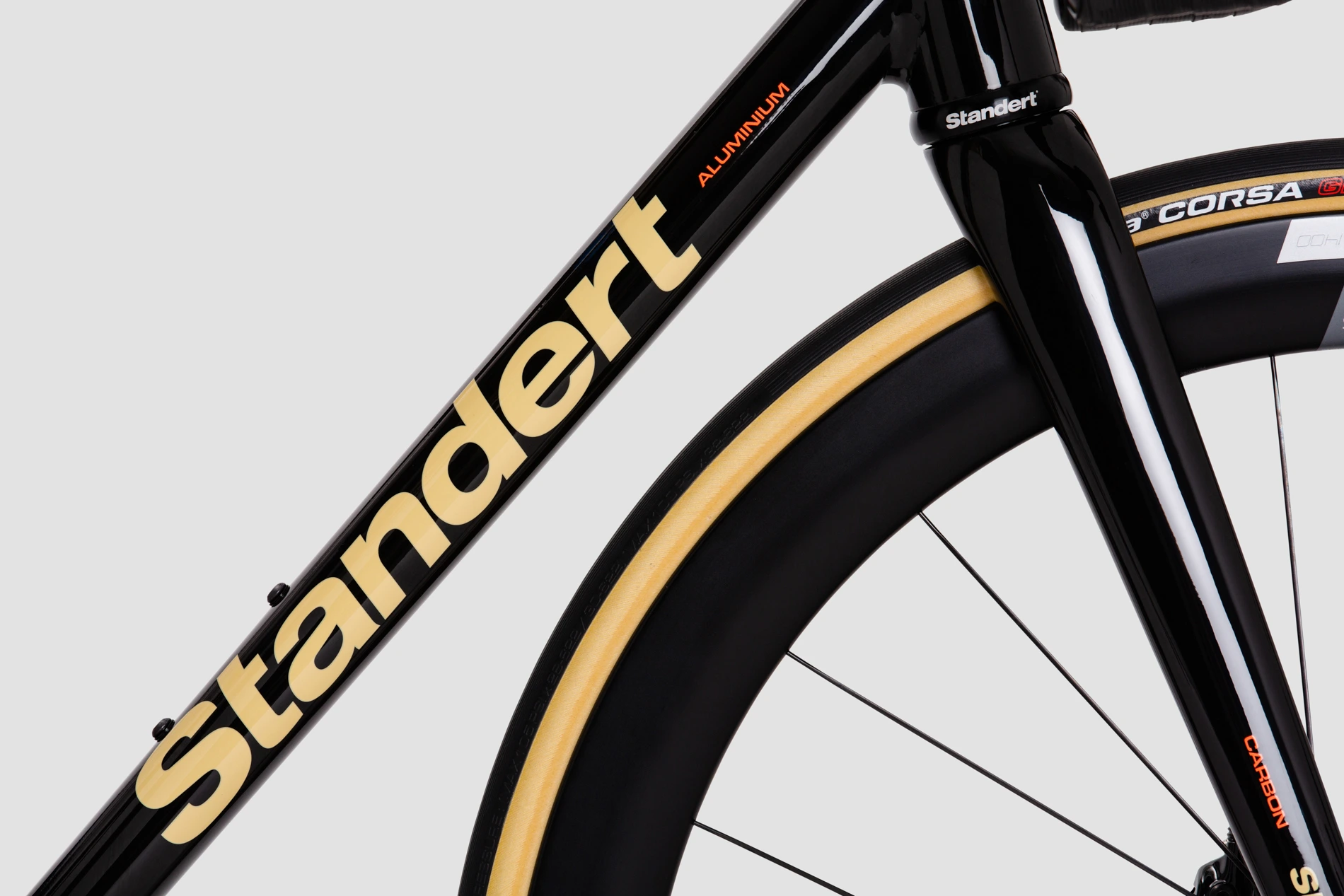

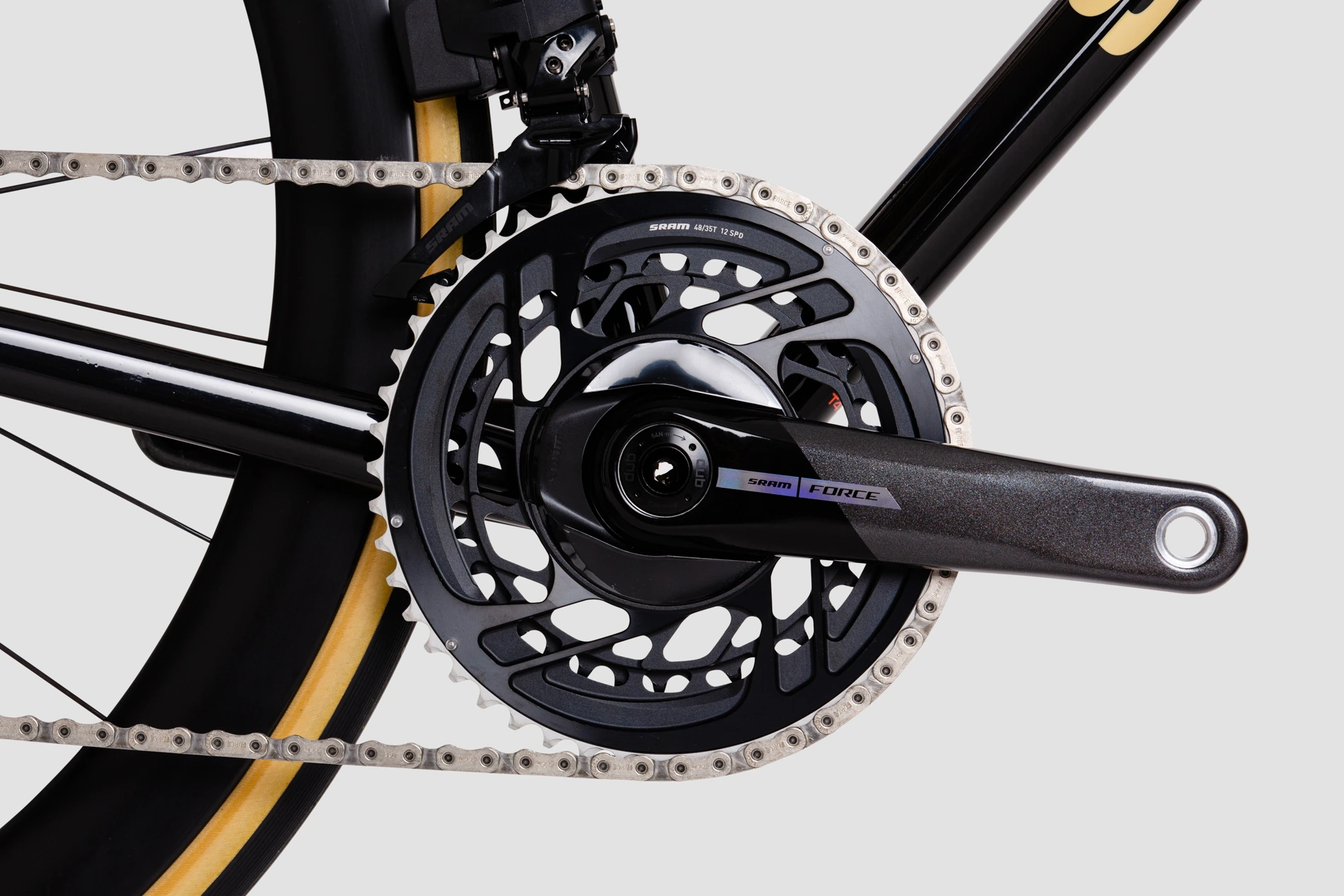

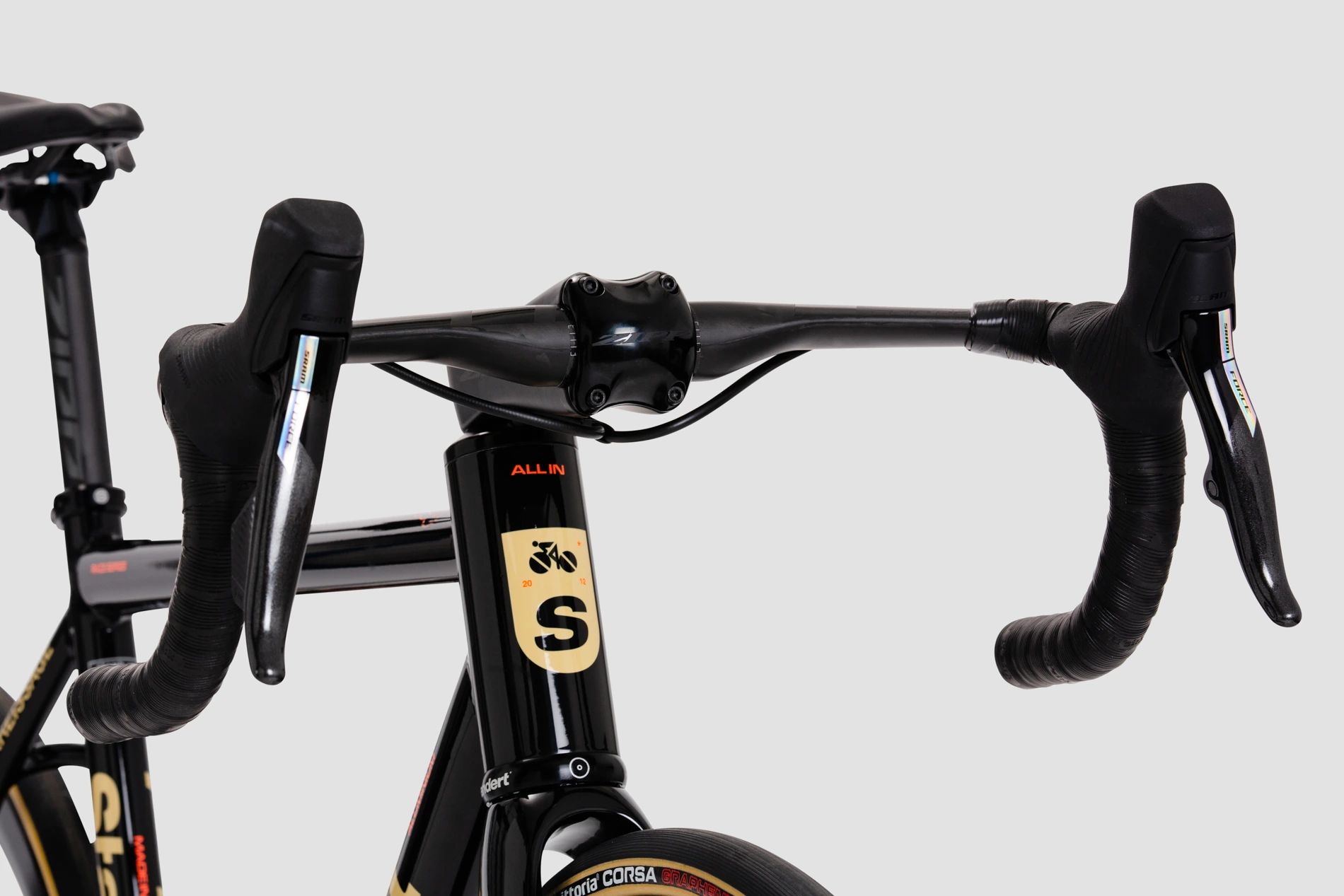

Kreissäge RS Analogue Edition Road Bike - Rear Disc Kreissäge RS Analogue Edition Road Bike - Handlebar Kreissäge RS Analogue Edition Disc Road Bike Kreissäge RS Analogue Edition Road Bike - Engineered in Berlin Kreissäge RS Analogue Edition Road Bike - Cabling Kreissäge RS Analogue Edition Road Bike - DT Swiss Wheels Kreissäge RS Analogue Edition Road Bike - Sram Crankset Kreissäge RS Analogue Edition Road Bike - Front Disc Kreissäge RS Analogue Edition Road Bike - Headtube Kreissäge RS Analogue Edition Road Bike - Made in Italy Kreissäge RS Analogue Edition Road Bike - Saddle Kreissäge RS Analogue Edition Road Bike - Sram Force Groupset Kreissäge RS Analogue Edition Road Bike - Vittoria Tires Kreissäge RS Analogue Edition Road Bike - Rear Hub Kreissäge RS Analogue Edition Road Bike - Zipp Handlebar

Geometry

48 PC™
50 PC™
52 PC™
54
56
58
60
A
Seat Tube Length
480
490
500
530
550
571
586
B
Top Tube Length
495
512
525
544
555
570
586
C
Head Tube Length
110
115
120
130
145
166
181
D
Seat Tube Angle
76.5
76
75.5
74
73.5
73.5
73.5
E
Head Tube Angle
71.25
72.5
73
73
73.5
73.5
73.5
F
Stack
521
530
537
544
560
580
595
G
Reach
370
380
386
388
390
398
410
H
Chainstay Length
405
405
405
410
410
410
410
I
Wheelbase
969
970
974
984
986
1000
1016
J
Standover Height
741
745
758
778
794
816
830
K
Crankset
165
170
170
170
172.5
172.5
172.5
L
Stem
100
110
110
120
120
130
130
M
Handlebar Width (C-C)
38
38
38
40
40
42
42
N
Seatpost
0
0
0
0
20
20
20

Size Guide

A
Body Height (cm)
B
Inseam (cm)
Frame Size
150
-
163
76
-
82
48 PC™
158
-
170
77
-
83
50 PC™
166
-
177
78
-
84
52 PC™
170
-
180
80
-
86
54
175
-
185
82
-
88
56
182
-
192
84
-
90
58
188
-
198
85
-
91
60
regular fit
race fit
regular fit
race fit
Shipping
Destination
Costs
€100
€190
€420
€590
€350
Custom Quote
Time
4–6 Weeks
4–6 Weeks
4–6 Weeks
4–6 Weeks
4–6 Weeks
4–6 Weeks
All in-stock and available products are subject to processing & shipping times stated here. Every frame is hand-prepared in our Berlin warehouse. All orders undergo careful preparation, including: facing & reaming bearing surfaces, chasing threads, installing small parts, and thorough quality control. We promise it’s worth the wait.
