- Fun is Fast. And it always will be.

  The Kreissäge is back.

  We really like the approach of taking it easy, shifting down a gear, deep breaths, observing and feeling nature around us.

  But to be honest when we are on our race bikes we just want that nature thing flying by left and right. Deep breaths should come from our hearts pumping at 190bpm and shifting down a gear should only be in preparation to drop the hammer.

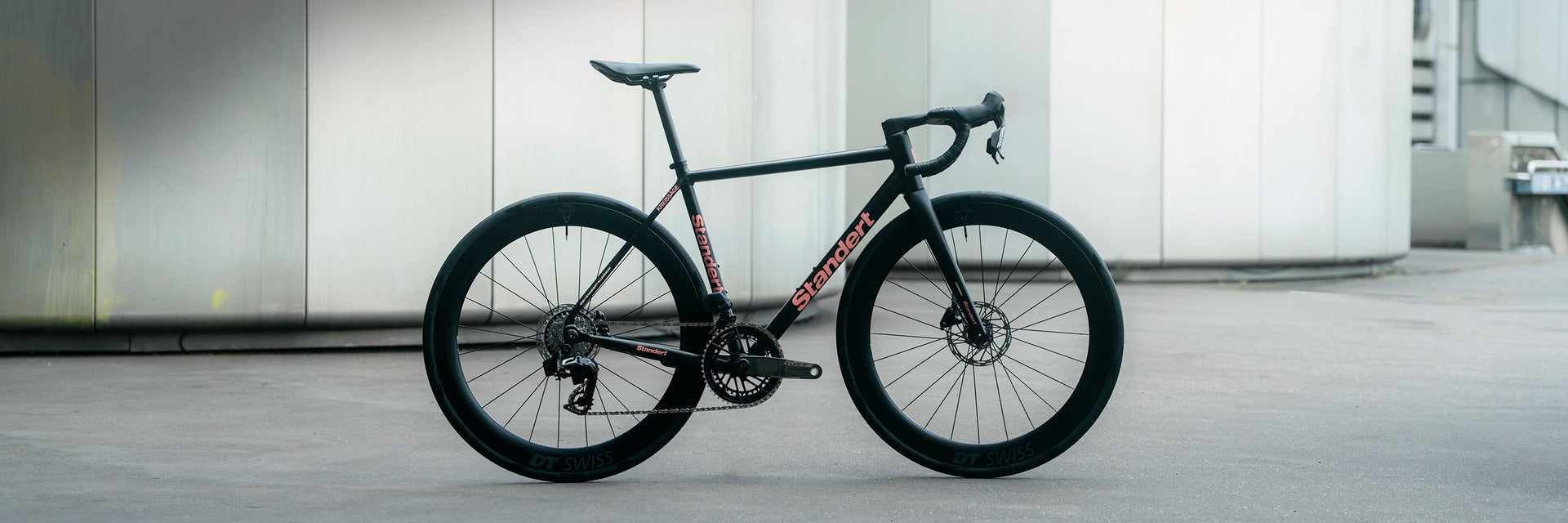

  The Kreissäge is an aluminium road bike frame made to go fast, brake late, hit the apex, accelerate out of turns and sprint for whatever you are sprinting for. Agile, direct, responsive, safe. Control is fast.
  - • Internal Di2 cable routing for tidy looks and reduced wear and tear. External brake cables for ease of service and external cable stops for mechanical shifting optional.
  - • Custom T47 bb shell with machined inside for optimized weight and space for internal cable routing
  - • Tire clearance to fit up to 28mm tires
  - • High end Scandium Aluminium frame with full carbon fork
  - • Race proven geometry for superior pedaling efficiency and handling
  - • Engineered in Berlin, Made in Italy
  Shop Kreissäge RIM online or visit us in Berlin.
FACT SHEETS

*Image shows size 54 with Force eTap AXS setup

$SECTION_IMAGE

$SECTION_DISCOVER

98;50;kreissaege-belgian-blue-rim-complete-front-diagonal
85;20;kreissaege-belgian-blue-rim-complete-handlebars-angle
78;32;kreissaege-belgian-blue-rim-complete-handlebars
85;24;kreissaege-belgian-blue-rim-complete-front
57;35;kreissaege-belgian-blue-rim-complete-front-crop
60;35;kreissaege-belgian-blue-rim-complete-brake
46;78;kreissaege-belgian-blue-rim-complete-crankset
33;73;kreissaege-belgian-blue-rim-complete-groupset
3;54;kreissaege-belgian-blue-rim-complete-back-diagonal
47;35;kreissaege-belgian-blue-rim-complete-made-in-italy
76;46;kreissaege-belgian-blue-rim-complete-tire
22;54;kreissaege-belgian-blue-rim-complete-hub-rear
26;16;kreissaege-belgian-blue-rim-complete-saddle
60;22;kreissaege-belgian-blue-complete-lucky-cat

$SECTION_QUOTE

$SECTION_SPECS

Stem;stem;Zipp Service Course Silver / SL Beyond Black / SL Sprint Matte Black
Handlebar;handlebar;Zipp Service Course 80 Silver / SL70 Beyond Black
Handlebar Tape;handlebar-tape-grips;Fizik
Shift / Brake Levers;shift-brake-levers;Sram Force eTap AXS
Brake Front;brake-front;Sram S-900 Direct Mount
Brake Rear;brake-rear; Sram S-900 Direct Mount
Derailleur Front;derailleur-front;Sram Force eTap AXS
Derailleur Rear;derailleur-rear;Sram Force eTap AXS
Cassette;cassette;Sram Force AXS PG-1270 10-28
Chain;chain;Sram PC-1270 12-Speed
Crankset;crankset;Sram Force AXS, 4835
Saddle;saddle;Fizik
Seatpost;seatpost;Zipp Service Course Silver / SL Beyond Black / SL Speed carbon

Frame;frame;Standert Kreissäge Rim
Fork;fork;Standert full carbon tapered 1 1/8"-1 1/2" direct mount
Colors;colors;Paceline Peach, Belgian Blue, Leadout Lemon
Sizes;sizes;48 Project Compact™, 50 Project Compact™, 52 Project Compact™, 54, 56, 58, 60
Weight;weight-kg; Complete (Size 54) 7,4 kg
Max. Tire Clearance;max.-tire-clearance;700x28C
Recom. max. rider weight;recom.-max.-rider-weight;95 kg
; ;
Headset;headset;Standert ZS/EC
Bottom Bracket;bottom-bracket;First T47
; ;
Wheelset;wheelset;DT Swiss PR 1400 Dicut 21
Tires;tires;Vittoria Corsa

$SECTION_GEOMETRY 48 PC™;50 PC™;52 PC™;54;56;58;60
a;Seat Tube Length;480;490;500;530;550;571;586
b;Top Tube Length;495;512;525;544;555;570;586
c;Head Tube Length;110;115;120;130;145;166;181
d;Seat Tube Angle;76.5;76;75.5;74;73.5;73.5;73.5
e;Head Tube Angle;71.25;72.5;73;73;73.5;73.5;73.5
f;Stack;521;530;537;544;560;580;595
g;Reach;370;380;386;388;390;398;410
h;Chainstay Length;405;405;405;410;410;410;410
i;Wheelbase;969;970;974;984;986;1000;1016
j;Standover Height;741;745;758;778;794;816;830
k;Crankset;165;170;170;170;172.5;172.5;172.5
l;Stem;100;110;110;120;120;130;130
m;Handlebar Width;38;38;38;40;40;42;42
n;Seatpost;0;0;0;0;20;20;20

$SECTION_SIZING Body Height;cm;Inseam;cm;Frame Size
150;163;76;82;48 PC™
158;170;77;83;50 PC™
166;177;78;84;52 PC™
170;180;80;86;54
175;185;82;88;56
182;192;84;90;58
188;198;85;91;60
regular fit;race fit;regular fit;race fit
