The Erdgeschoss. Updated.

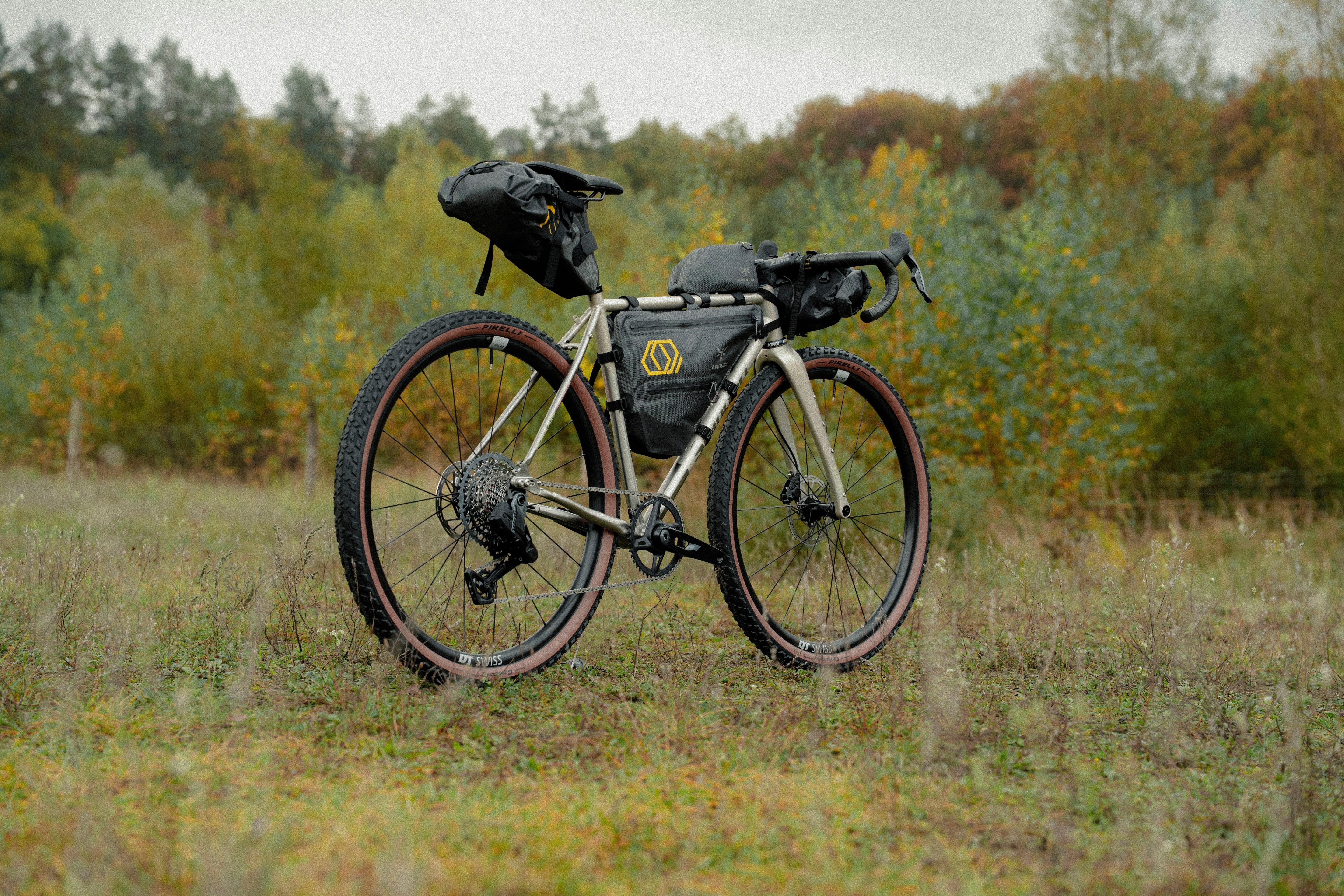

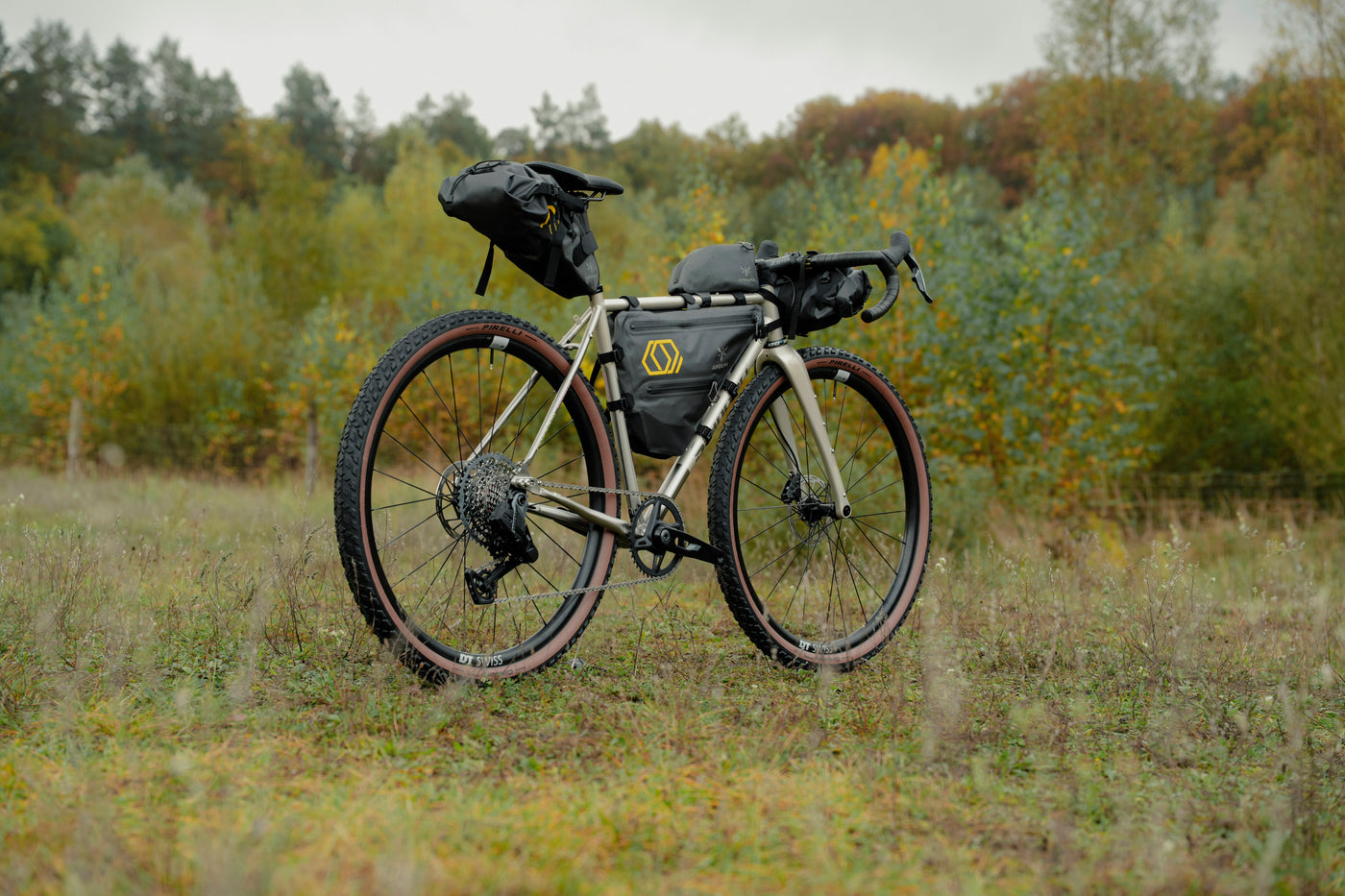

Our bikepacking and gravel bike is back and it’s better than it ever was.
Explore more. Pack more. Worry less. Stainless!

With every generation of the Erdgeschoss we reach a new level of what we thought this bike could do for us. And the new updated version does it again!

We used all the goodness already built-in and added some more to perfect your gravel and bikepacking experience. More details and more features for less worries while you’re out there exploring.

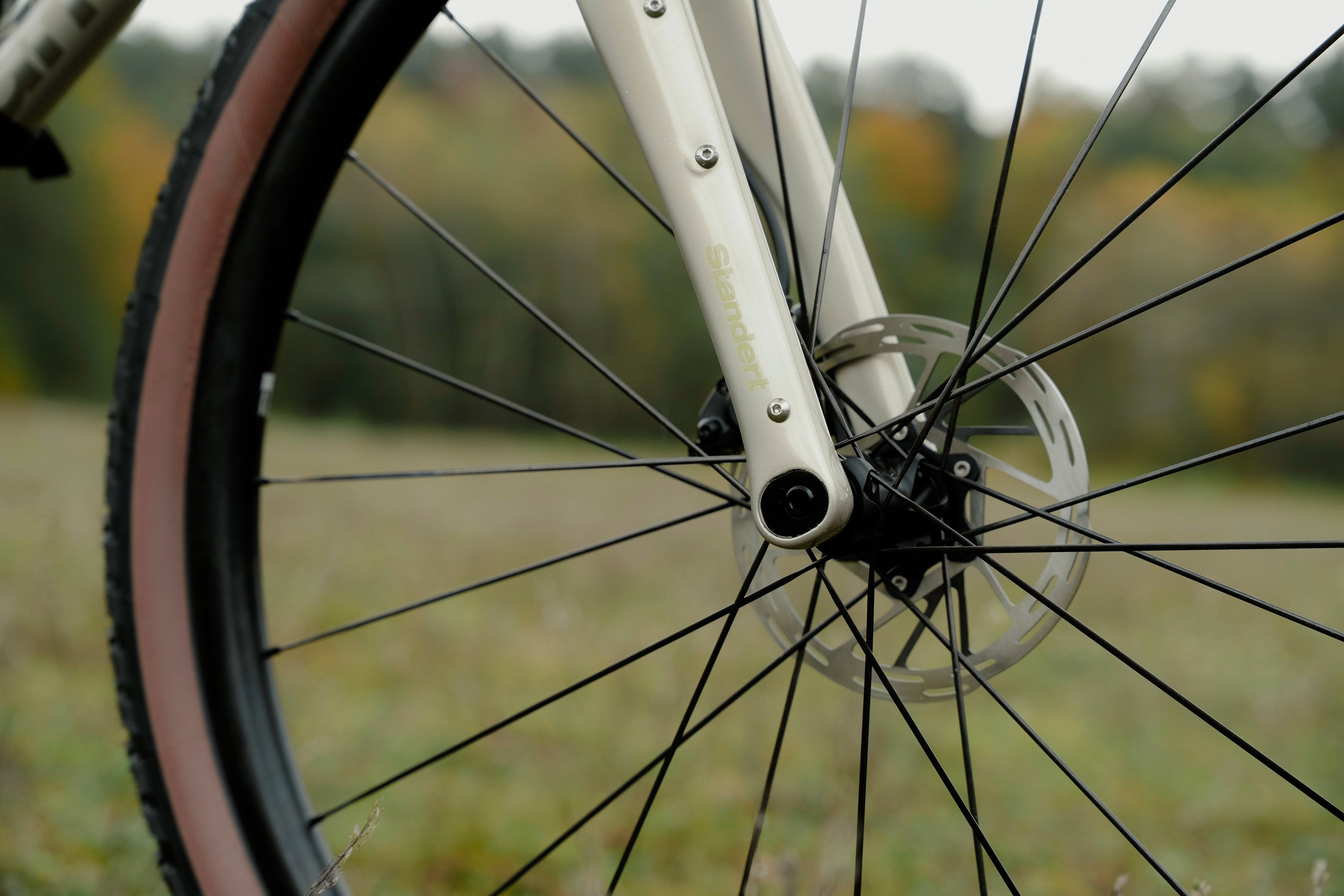

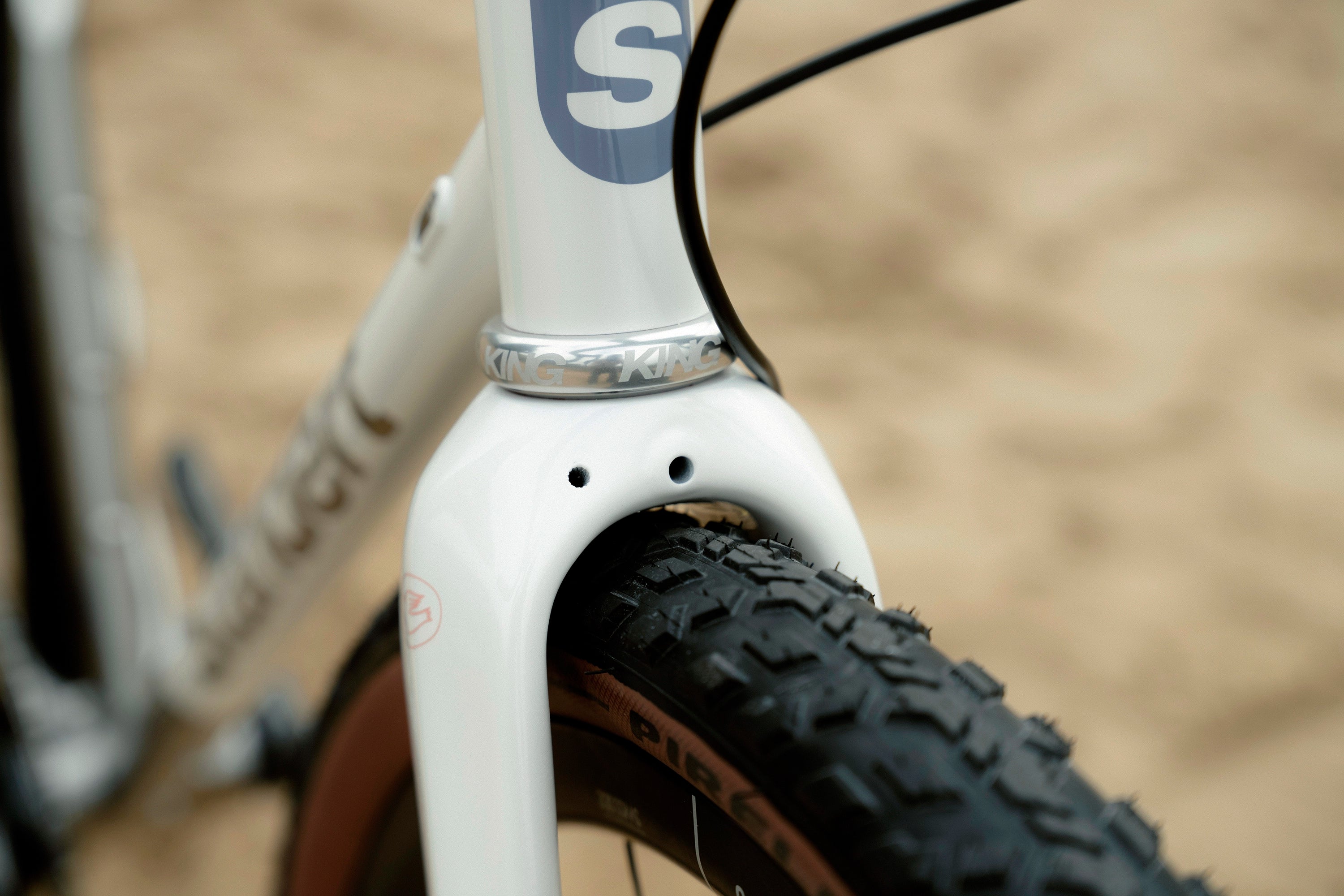

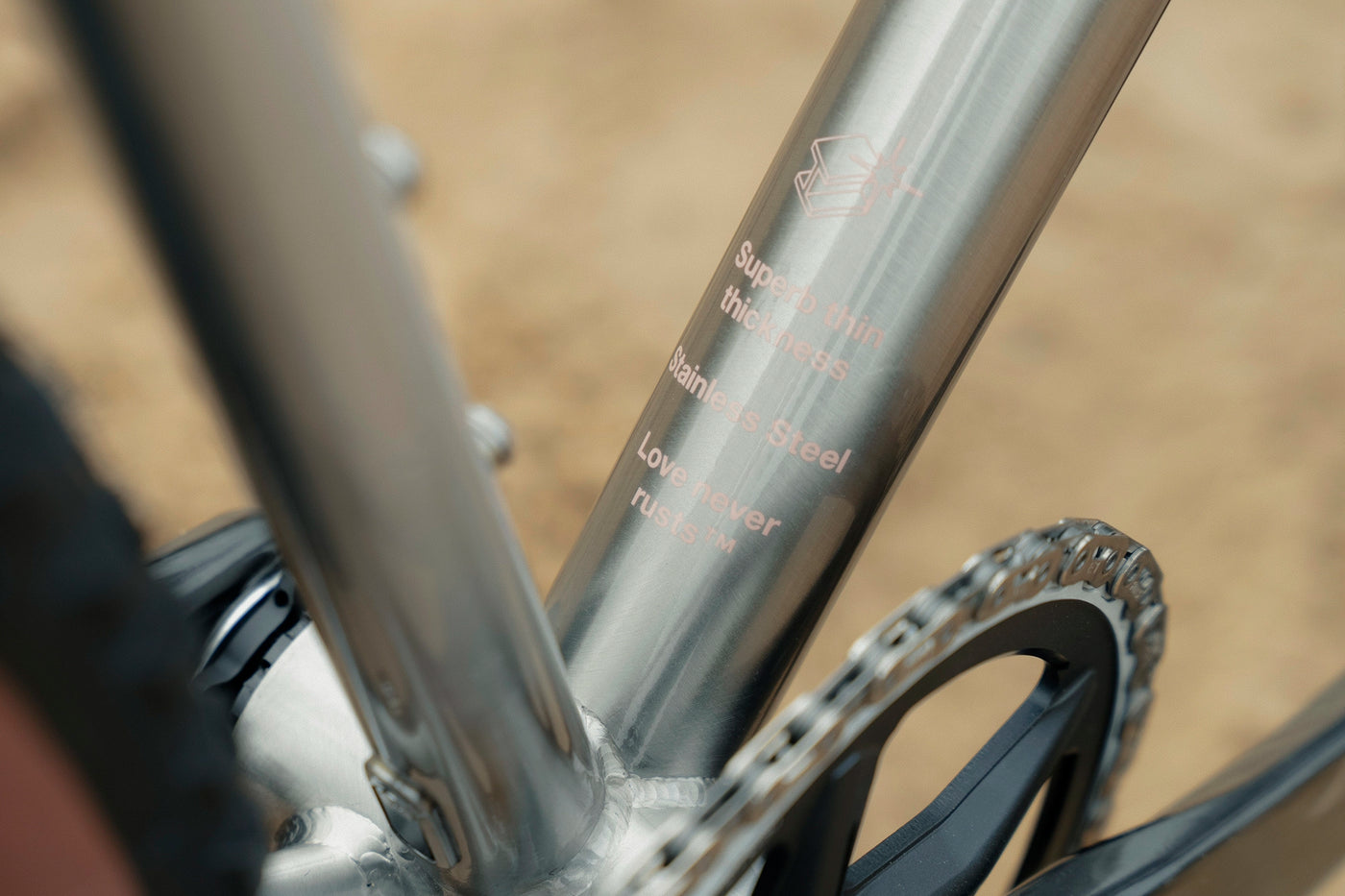

The Erdgeschoss is made from stainless steel and comes with the new Columbus Cross+ fork which is stacked with features. The internal cable housing for dynamo hub lighting makes sure that you’ll never again be left out in the dark. Meanwhile the Multi-Rake System allows for fork offset adjustments, based on the chosen wheel diameter and tire width as well a variety of load and reactivity needs.

Matching the fork the updated Erdgeschoss has internal light cable routing through the frame with a dedicated light mount on the seatstay.

Wheelbase adjustments and tire clearance of up to 650b x 54c (700 x 50c)? No problem with our all new sliding dropouts.

Offroad, gravel, sand, wet, mud, go far, carry loads - the Erdgeschoss has got you covered.

Our updated Erdgeschoss is the most capable companion. All the features, all the style, all the excellent qualities of a steel bikepacking and gravel bike, all the trust and none of the rust.

FACT SHEET

''We’re sure that the new Erdgeschoss will sell like hotcakes!''

''Building on the success of the previous edition, the latest Standert Bicycles Erdgeschoss is claimed to be packed with more features and better suited to the demands of bikepacking.''

$SECTION_IMAGE

$SECTION_DISCOVER
98;45;erdgeschoss-22update-moss-def-complete-bike-front-diagonal
82;64;erdgeschoss-22update-moss-def-complete-bike-fork
80;70;erdgeschoss-22update-moss-def-complete-bike-front-hub
70;23;erdgeschoss-22update-moss-def-complete-bike-badge-angle
82;15;erdgeschoss-22update-moss-def-complete-bike-front-detail
2;45;erdgeschoss-22update-moss-def-complete-bike-back-diagonal
85;24;erdgeschoss-22update-moss-def-complete-bike-handlebars
78;30;erdgeschoss-22update-moss-def-complete-bike-handlebars-side
59;34;erdgeschoss-22update-moss-def-complete-bike-cabling-detail
59;34;erdgeschoss-22update-moss-def-complete-bike-reverse-cabling

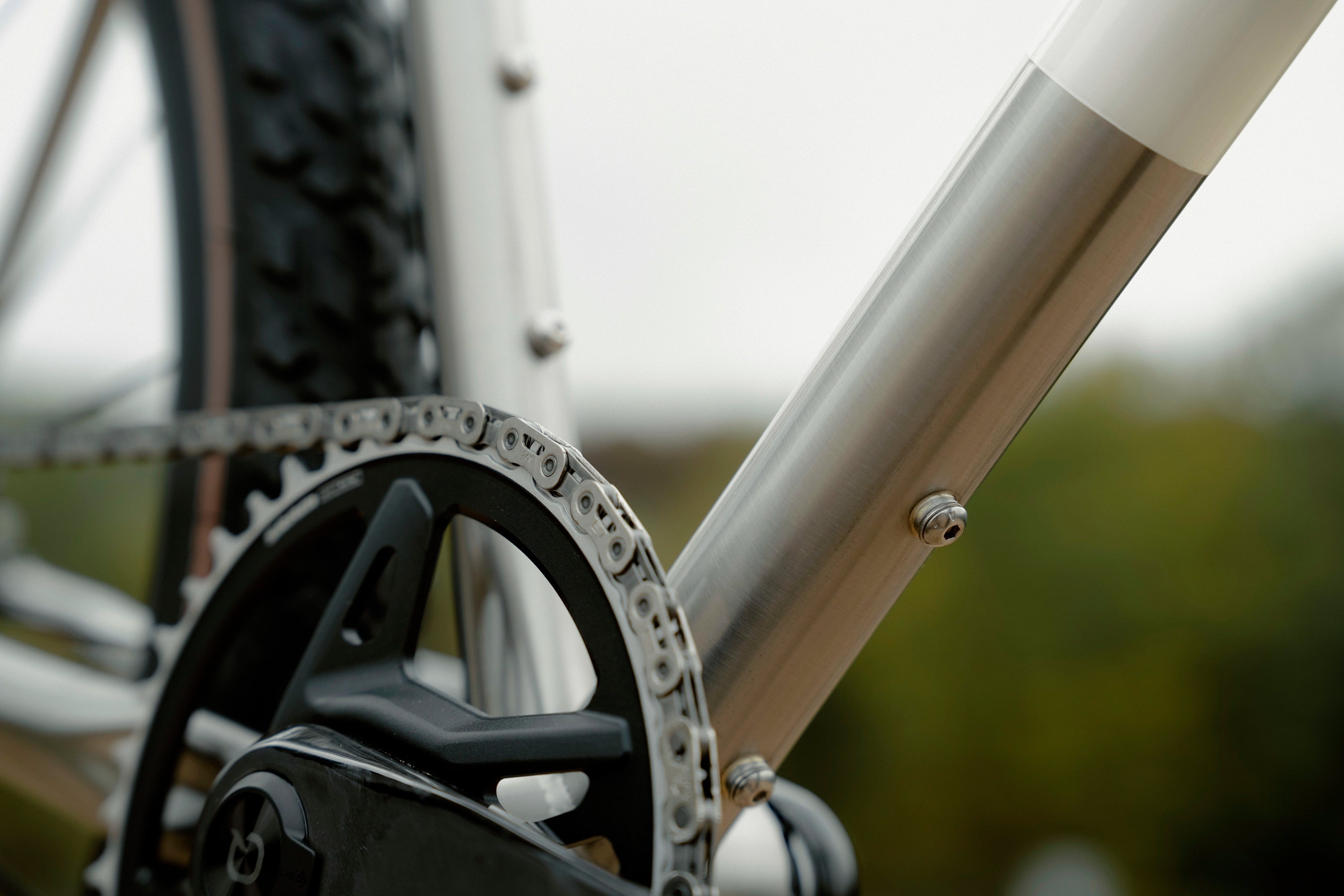

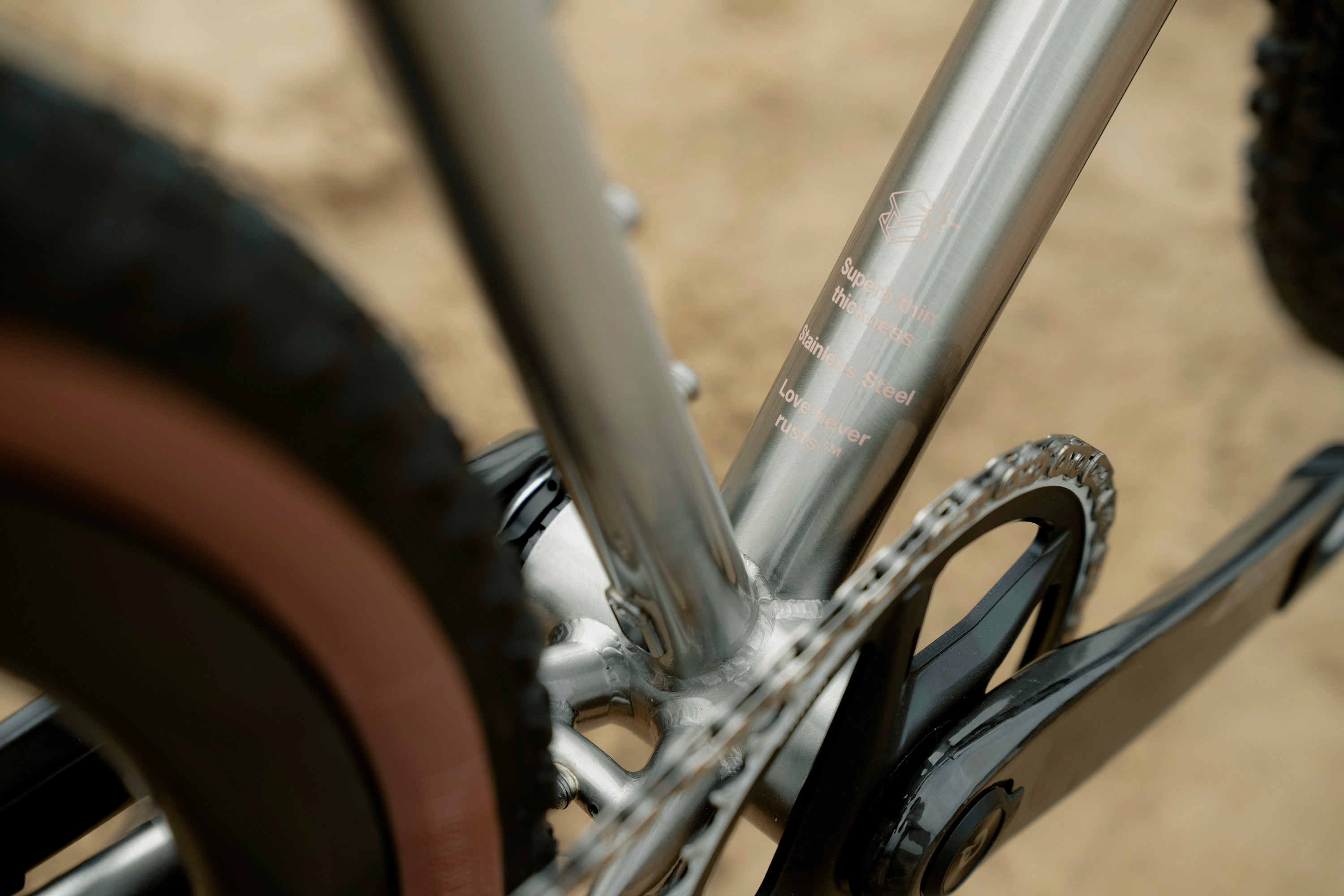

45;78;erdgeschoss-22update-moss-def-complete-bike-crankset
48;56;erdgeschoss-22update-moss-def-complete-bike-details
65;42;erdgeschoss-22update-moss-def-complete-bike-frame-crop
78;47;erdgeschoss-22update-moss-def-complete-bike-tire
20;52;erdgeschoss-22update-moss-def-complete-bike-rear-hub
33;55;erdgeschoss-22update-moss-def-complete-bike-groupset
26;16;erdgeschoss-22update-moss-def-complete-bike-saddle
36;38;erdgeschoss-22update-moss-def-complete-bike-light-detail

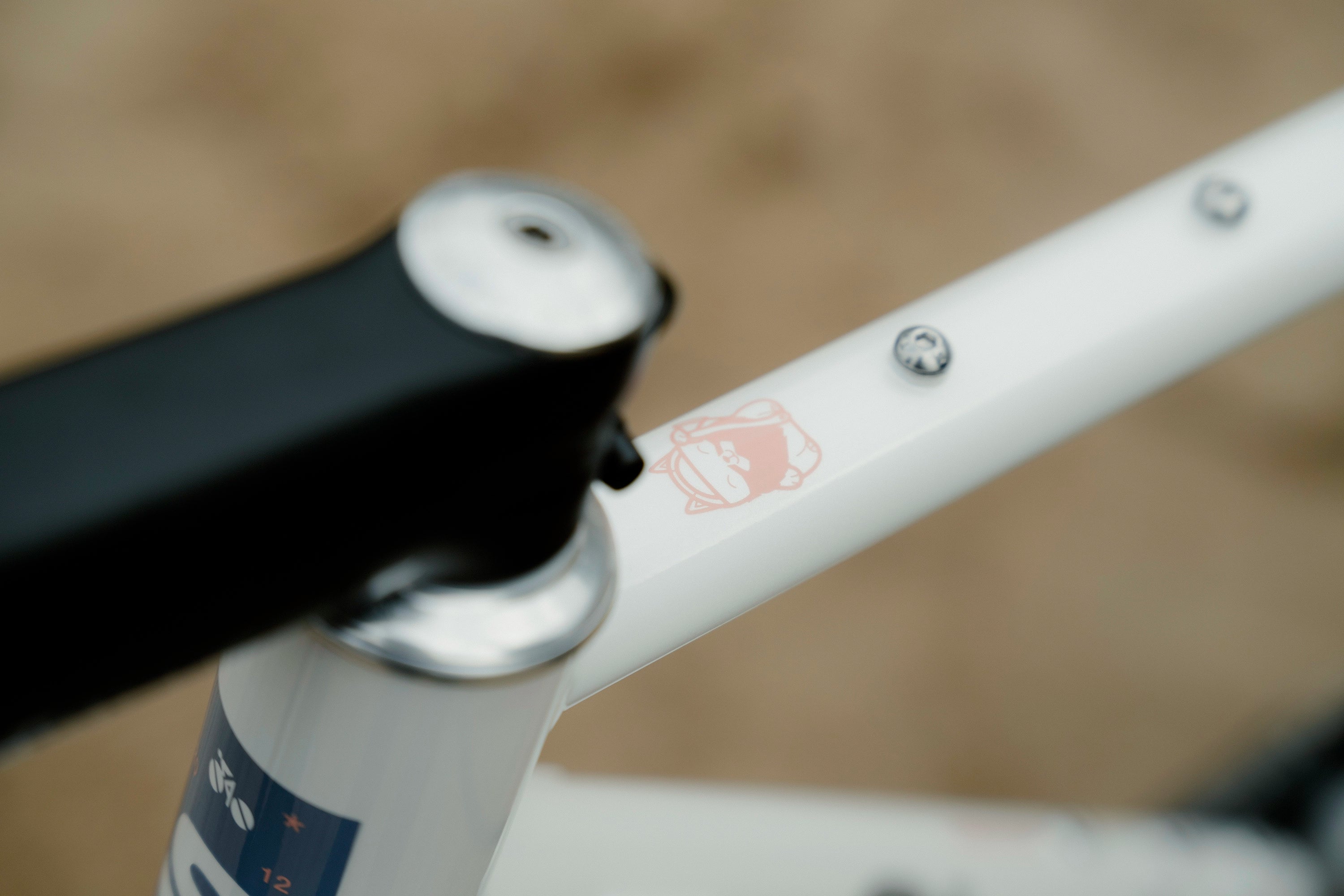

33;34;erdgeschoss-22update-moss-def-complete-bike-lucky-cat

$SECTION_QUOTE

$SECTION_SPECS

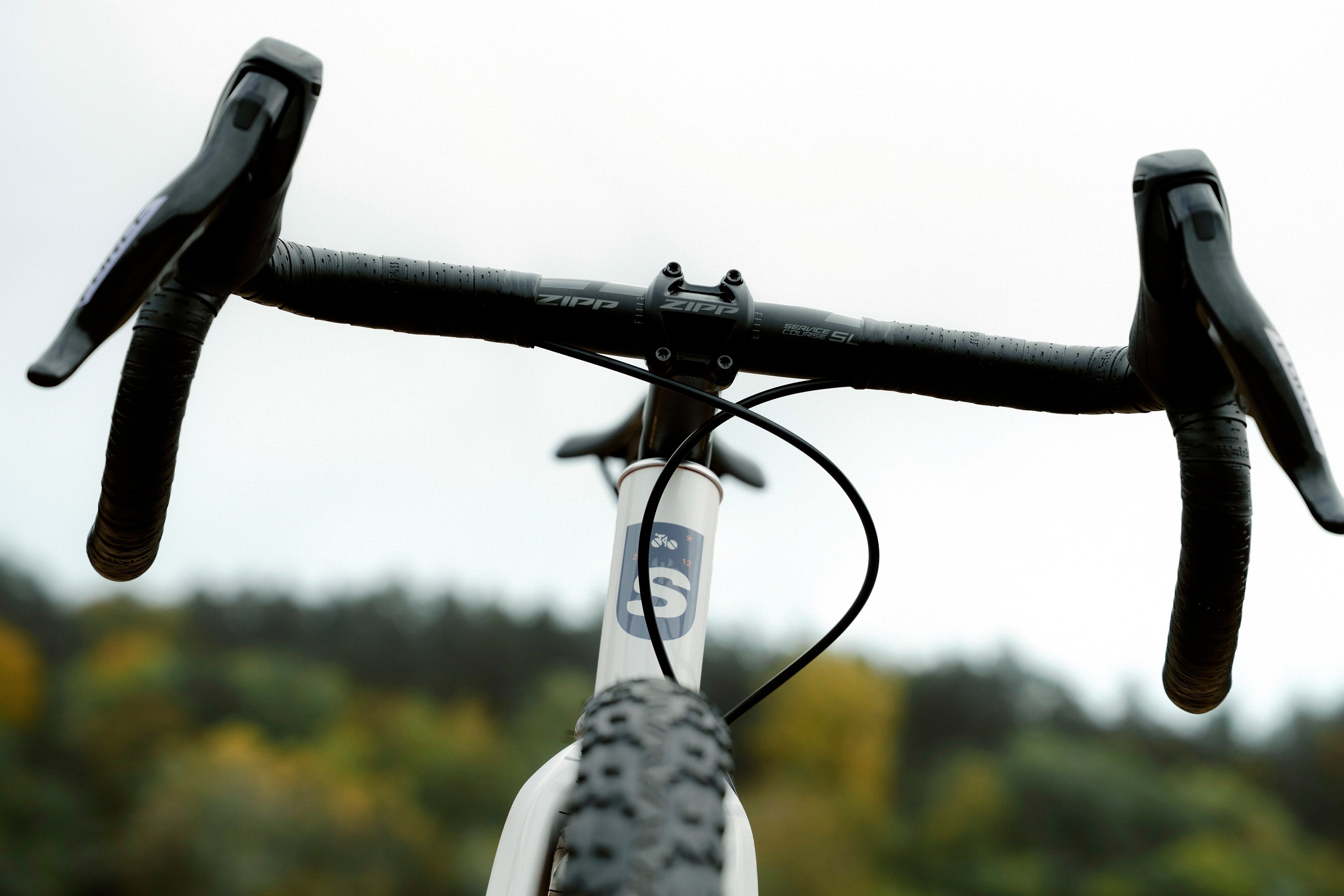

Stem;stem;Zipp Service Course SL
Handlebar;handlebar;Zipp Service Course SL70 XPLR Beyond Black
Handlebar Tape / Grips;handlebar-tape-grips;Fizik Terra
Shift / Brake Levers;shift-brake-levers;Sram Force AXS eTap
Brake Front;brake-front;Sram Force eTap HRD flat mount, Paceline rotor 160mm
Brake Rear;brake-rear;Sram Force eTap HRD flat mount, Paceline rotor 160mm
Derailleur Front;derailleur-front;-
Derailleur Rear;derailleur-rear;Sram Force XPLR eTap AXS
Cassette;cassette;Sram Force XPLR eTap AXS, XG 1271, 10-44
Chain;chain;Sram Force AXS 12speed
Crankset;crankset;Sram Force 1 DUB 40t
Saddle;saddle;Fizik Terra Argo X3
Seatpost;seatpost; Zipp Service Course SL carbon

Frame;frame;Standert Erdgeschoss Stainless
Fork;fork;Columbus Cross+ carbon 1⅛"-1½"
Colors;colors;Moss Def, Rawkim
Sizes;sizes;48 Project Compact™, 50 Project Compact™, 52 Project Compact™, 54, 56, 58, 60 *Image shows size 54
Weight;weight-kg; Complete 9.8kg
; ;
Headset;headset;Chris King Inset 7
Bottom Bracket;bottom-bracket;First T47
; ;
Wheelset;wheelset;DT Swiss GRC 1400 Spline 650b carbon
Tires;tires;Pirelli Cinturato Gravel H 650bx50

$SECTION_GEOMETRY 48PC™;50PC™;52PC™;54;56;58;60
a;Seat Tube Length;460;480;500;520;540;560;580
b;Top Tube Length;500;520;530;545;560;575;585
c;Head Tube Length;89;100;110;122;138;160;180
d;Seat Tube Angle;76.5;75.5;75;74;73.5;73;73
e;Head Tube Angle;71.25;71.25;71.5;71.5;72;72;72.5
f;Stack;519;529;539;551;568;589;610
g;Reach;373;381;384;386;391;394;398
h;Chainstay Length;425;425;425;425;425;425;425
i;Wheelbase;996;1008;1012;1018;1024;1034;1039
j;Standover Height;746;760;774;789;805;826;846
k;Crankset;165;170;170;170;172.5;172.5;172.5;
l;Stem;90;100;100;100;110;110;110;
m;Handlebar Width;42;42;42;44;44;44;44;
n;Setback;0;0;0;0;20;20;20;

$SECTION_SIZING Body Height;cm;Inside Leg;cm;Frame Size
150;163;75;82;48PC™
158;170;76;83;50PC™
166;177;77;84;52PC™
170;180;79;86;54
175;185;81;88;56
182;192;83;91;58
188;198;85;94;60
regular fit;sport fit;regular fit;sport fit
