Kreissäge RS Green Aluminium Road Bike Frame

Home » Road Performance » Kreissäge RS » Kreissäge RS | Frameset | Get It Green MY24

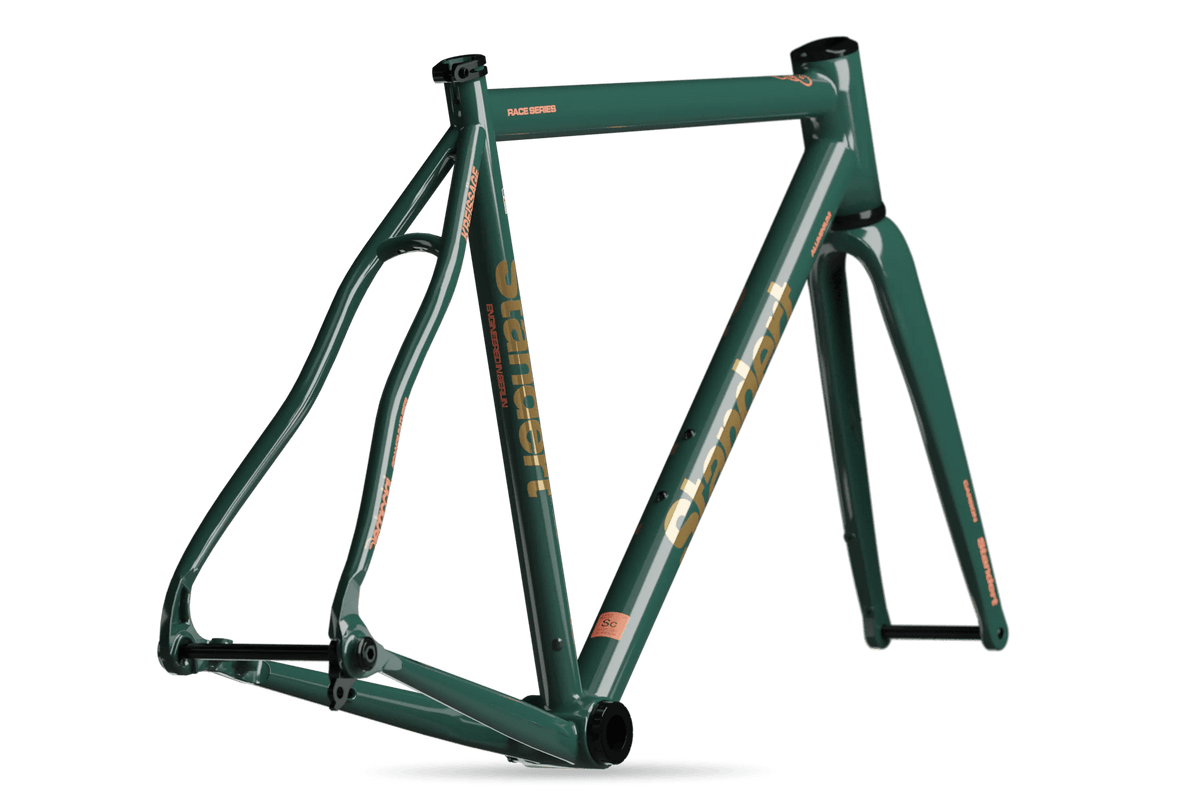

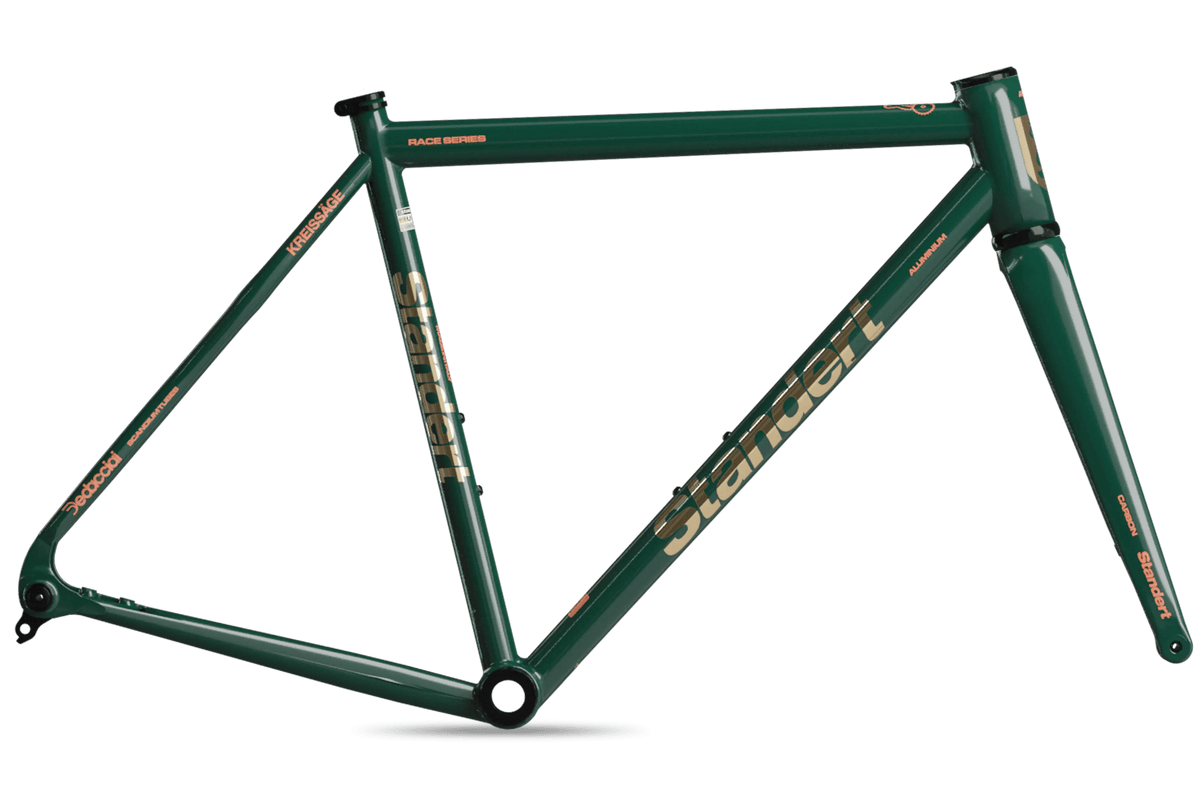

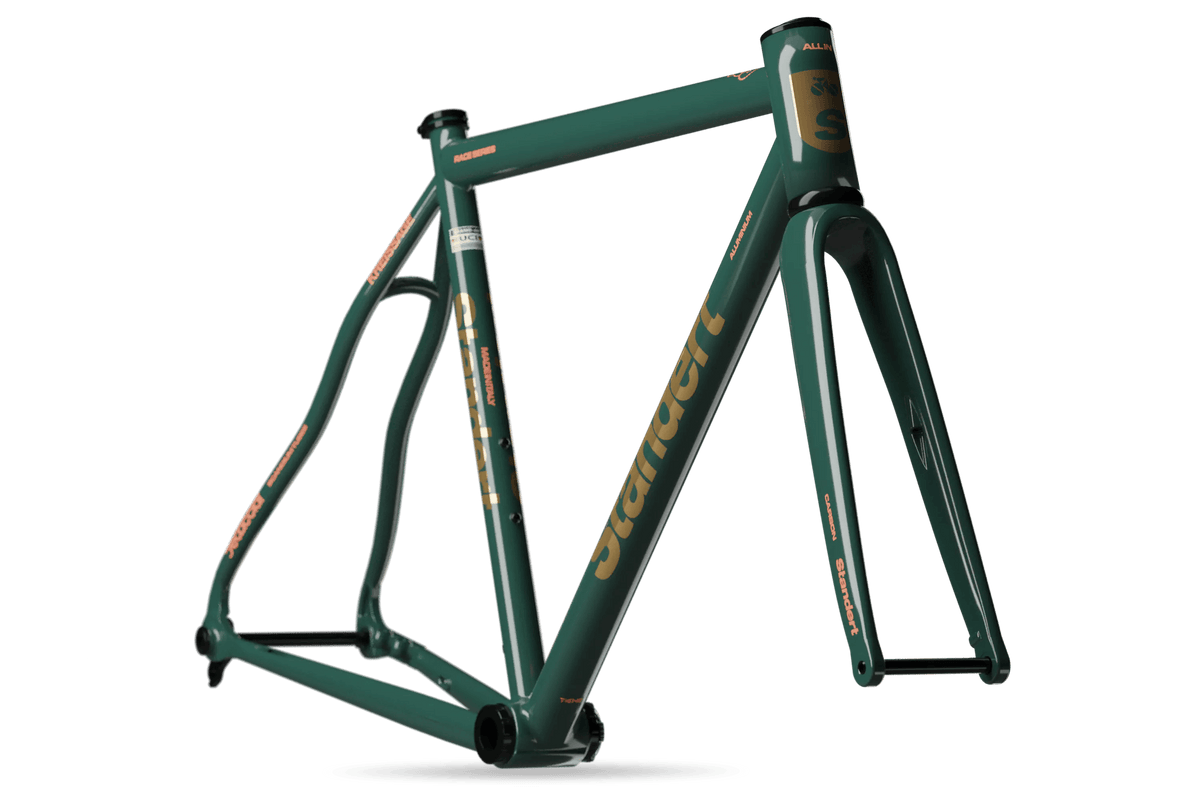

Kreissäge RS | Frameset | Get It Green MY24

Name: Kreissäge RS | Frameset | Get It Green MY24
Brand: Standert
SKU: 109683
Price: 1637.82 EUR
Availability: InStock

from

1,949.01 EUR

price without VAT: 1,637.82 EUR

or from

€28.33 EUR/month

Color

Size

48 PC™

50 PC™

52 PC™

Notify me

Geometry

Size guide

1: Select size

1: Size selected

2: Configure

2: Configured

3: Add to cart

Italian made Dedacciai custom Scandium tubeset. Incredibly stiff, surprisingly comfortable.

Made in Italy by some of the best artisans in the business for road bike enthusiasts.

Custom CNC-machined dropouts + SRAM Universal Derailleur Hanger (UDH) for optimized shifting.

Custom Engineered Standert integrated headset for our signature 56mm headtube.

Optional CeramicSpeed SLT bearings. Removes the headache from integrated headsets.

Standert monocoque carbon fork; 45mm rake. 160mm max rotor clearance. 30mm max tire clearance (actual width).

Fully integrated cable routing.

Shipping

Reviews

We really like the approach of taking it easy, shifting down a gear, deep breaths, observing and feeling nature around us.

But to be honest when we are on our race bikes we just want that nature thing flying by left and right. Deep breaths should come from our hearts pumping at 190bpm and shifting down a gear should only be in preparation to drop the hammer.
The Kreissäge RS Disc is an aluminium road bike made to go fast, brake late, hit the apex, accelerate out of turns and sprint for whatever you are sprinting for. Agile, direct, responsive, safe. Control is fast.

Fast is still F.U.N.

What’s new on the RS?

• Fully internal brake and Di2 cable routing for tidy looks and reduced wear and tear. External cable stops for mechanical shifting optional.

• Custom T47 bb shell with machined inside for optimized weight and space for internal cable routing.

• More tire clearance to fit up to 30mm tires.

What remains the same?

• High end Scandium Aluminium frame with full carbon fork

• The same race proven geometry for superior pedaling efficiency and handling

• Engineered in Berlin, Made in Italy

FACT SHEETS

*Image shows size 54

$SECTION_IMAGE

Kreissage RS Disc Team Frame

$SECTION_DISCOVER
60;8; kreissaege-rs-rim-frameset-team-edition-lucky-cat
43;64; kreissaege-disc-frameset-team2020-details
11;64; kreissaege-disc-frameset-team2020-dropout
50;39; kreissaege-disc-frameset-team2020-side-profile
40;39; kreissaege-disc-frameset-team2020-made-in-italy
23;35;kreissaege-disc-frameset-team2020-back-crop
75;20; kreissaege-disc-frameset-team2020-front-badge
75;32; kreissaege-disc-frameset-team2020-cabling-detail
77;27; kreissaege-disc-frameset-team2020-cabling-detail-1
83;55; kreissaege-disc-frameset-team2020-front-view
57;30;kreissaege-disc-frameset-team2020-frame-crop
15;50; kreissaege-disc-frameset-team2020-back-diagonal
42;28; kreissaege-disc-frameset-team2020-seat-stem
47;80; kreissaege-disc-frameset-team2020-bb

$SECTION_QUOTE

$SECTION_SPECS

Frameset; ;Included in the frameset:
Frame;frame;Standert Kreissäge RS Disc
Fork;fork;Standert tapered full carbon flat mount
Headset;headset;Standert ZS/EC
Bottom Bracket;bottom-bracket;First T47
Seatpost Clamp;seatpost-clamp;31.8mm
Through Axles;through-axles;front 12x100, rear 12x142
; ;

Dimensions; ;Additional dimensions are:
Seatpost Diameter;seatpost;27.2mm
Front Derailleur Clamp Diameter;front-derailleur-clamp-diameter;31.8mm
Max. Tire Clearance;max.-tire-clearance;700x30c
Recom. max. rider weight;recom.-max.-rider-weight;90 kg
; ;

Colors;colors;;Team Edition, Royal Navy, Blue Moon, Fluo Forrest
Sizes;sizes;48 Project Compact™, 50 Project Compact™, 52 Project Compact™, 54, 56, 58, 60
Weight;weight-kg;Frame (size 54) 1435g, Fork 450g

$SECTION_GEOMETRY 48 PC™;50 PC™;52 PC™;54;56;58;60
a;Seat Tube Length;480;490;500;530;550;571;586
b;Top Tube Length;495;512;525;544;555;570;586
c;Head Tube Length;110;115;120;130;145;166;181
d;Seat Tube Angle;76.5;76;75.5;74;73.5;73.5;73.5
e;Head Tube Angle;71.25;72.5;73;73;73.5;73.5;73.5
f;Stack;521;530;537;544;560;580;595
g;Reach;370;380;386;388;390;398;410
h;Chainstay Length;405;405;405;410;410;410;410
i;Wheelbase;969;970;974;984;986;1000;1016
;Standover Height;741;745;758;778;794;816;830

$SECTION_SIZING Body Height;cm;Inseam;cm;Frame Size
150;163;76;82;48 PC™
158;170;77;83;50 PC™
166;177;78;84;52 PC™
170;180;80;86;54
175;185;82;88;56
182;192;84;90;58
188;198;85;91;60
regular fit;race fit;regular fit;race fit

Configure your Kreissäge RS | Frameset | Get It Green MY24

Size

Frame

Standert Kreissäge RS

Fork

Standert integrated tapered full carbon flat mount

Headset

Standert Integrated

Bottom Bracket

Standert T47

Seatpost Clamp

31.8mm

Through Axles

Front 12x100, rear 12x142

Seatpost Diameter

27.2mm

Front Derailleur Clamp Diameter

31.8mm

Max. Tire Clearance

700x30c

Recom. max. system weight

105 kg

Weight

Frame (size 54) 1360g, Fork 400g

Add-Ons

Price for current setup

Kreissäge RS | Frameset | Get It Green MY24

Size

not set

1,949.01 EUR

price without VAT: 1,376.00 EUR

Stock incoming. Frames will start shipping from the 1st week of June 2024. All frames require some work and are prepared to order by our in-house team of mechanics.

Geometry

48 PC™

50 PC™

52 PC™

Seat Tube Length

480

490

500

530

550

571

586

Top Tube Length

495

512

525

544

555

570

586

Head Tube Length

110

115

120

130

145

166

181

Seat Tube Angle

76.5

75.5

73.5

Head Tube Angle

71.25

72.5

73.5

Stack

521

530

537

544

560

580

595

Reach

370

380

386

388

390

398

410

Chainstay Length

405

410

Wheelbase

969

970

974

984

986

1000

1016

Standover Height

741

745

758

778

794

816

830

Size Guide

Body Height (cm)

Inseam (cm)

Frame Size

150

163

48 PC™

158

170

50 PC™

166

177

52 PC™

170

180

175

185

182

192

188

198

regular fit

race fit

regular fit

race fit

Shipping

Destination

Costs

€30

Time

1-3 Weeks

All in-stock and available products are subject to processing & shipping times stated here. Every frame is hand-prepared in our Berlin warehouse. All orders undergo careful preparation, including: facing & reaming bearing surfaces, chasing threads, installing small parts, and thorough quality control. We promise it’s worth the wait.
