Umlaufbahn Ep.4 | Frameset | Starlight Express

949.00 EUR

price without VAT: 670.00 EUR

Color
Size
48 PC™
50 PC™
52 PC™
54
56
58
60
Specs
Add-ons
Framsets ship in 1-3 weeks.
Specs
Geometry
Size Guide
Shipping
Reviews
  • A speed demon on both the track and urban streets

  • Tapered head tube for more confidence at high speed

  • Out-of-this-world designs

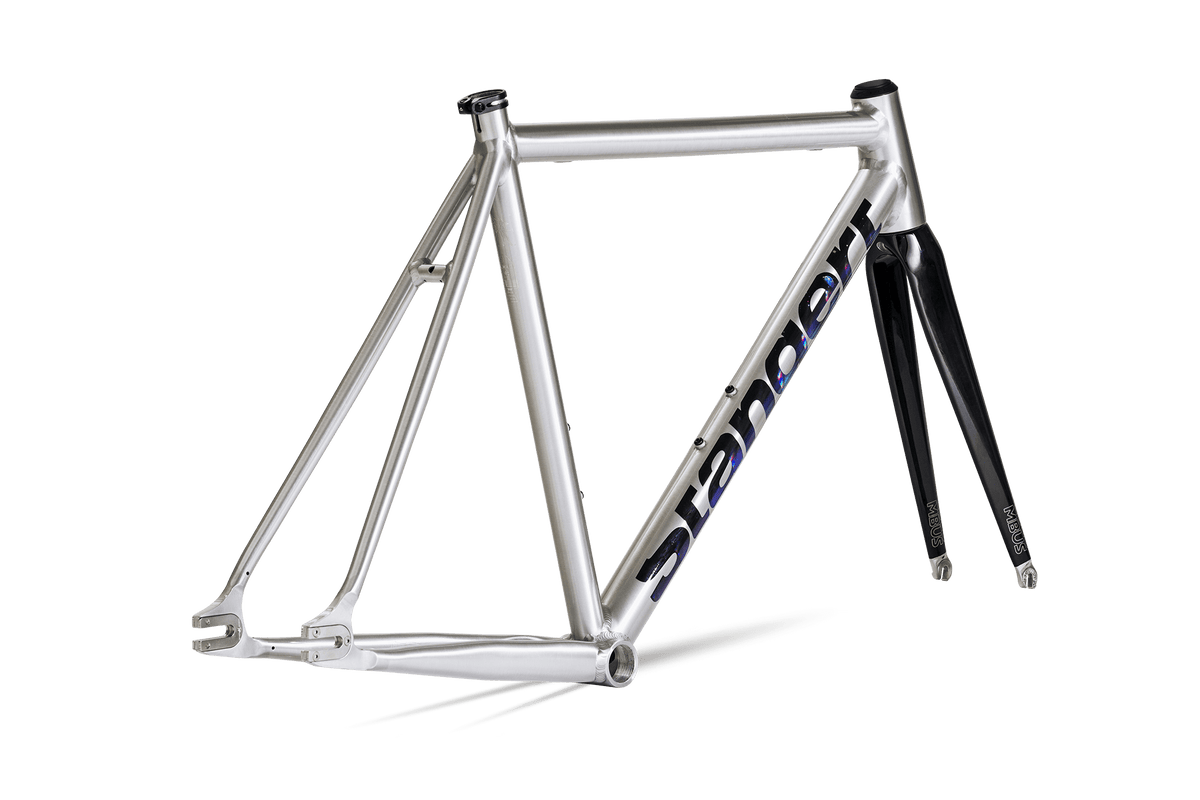

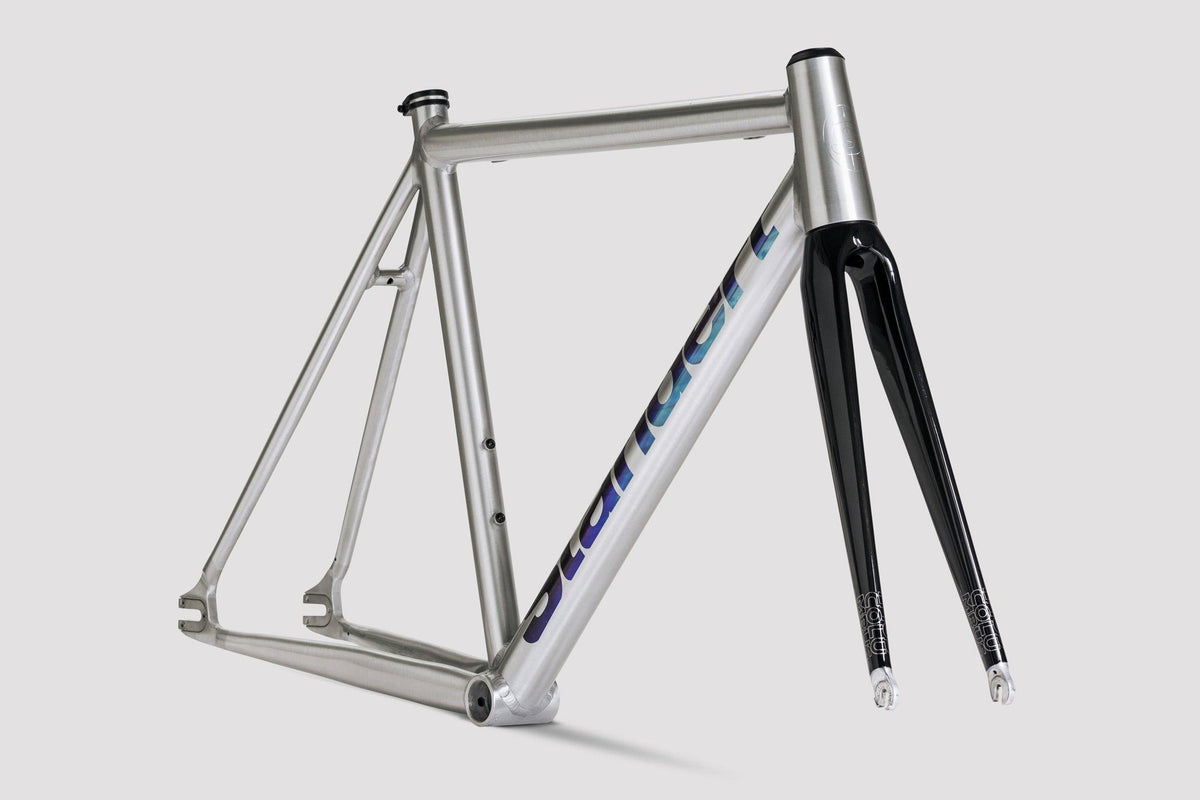

Umlaufbahn Track Bike Frameset

Raced and loved worldwide by teams and individuals in crits and on the track. We stuck to the proven racing geometry of the Umlaufbahn track bike frameset but added internal brake cable routing and mounts for two bottle cages. Your new commuter-fun-machine awaits. Fixed gear or single speed - it’s your choice.

Specs

Frame
Standert Umlaufbahn

Fork
Columbus Pista Leggera

Headset
IS42/28.6 | IS52/40

Bottom Bracket
BSA (not included)

Seatpost Clamp
31.8mm

Seatpost Diameter
27.2mm

Max. Tire Clearance
700x28c

Weight
Frame (Size 54) 1435g, Fork 450g

Recommended Max. Rider Weight
100kg

Add-Ons

Geometry

48 PC
50 PC
52 PC
54
56
58
60
A
Seat Tube Length
480
495
510
525
540
560
580
B
Top Tube Length
500
510
520
535
555
575
590
C
Head Tube Length
100
110
120
132
148
167
188
D
Seat Tube Angle
76
75.5
75
74.5
74
74
74
E
Head Tube Angle
73
73.5
73.5
74
74
74.5
74.5
F
Stack
486
497
506
519
534
555
574
G
Reach
377
381
384
391
402
416
426
H
Chainstay Length
390
390
390
390
390
390
390
I
Wheelbase
934
937
942
949
964
979
994
J
Standover Height
749
761
772
784
800
816
836

Size Guide

A
Body Height (cm)
B
Inseam (cm)
Frame Size
150
-
163
76
-
82
48 PC
158
-
170
77
-
83
50 PC
166
-
177
78
-
84
52 PC
170
-
180
80
-
86
54
175
-
185
82
-
88
56
182
-
192
84
-
90
58
188
-
198
85
-
81
60
regular fit
race fit
regular fit
race fit
Shipping
Destination
Costs
€30
€40
€160
€230
€120
€320
Time
2–6 Weeks
2–6 Weeks
2–6 Weeks
2–6 Weeks
2–6 Weeks
2–6 Weeks
