T47 is a standard created by custom frame builders. It’s threaded, has an inner diameter of
47mm, and is
68mm wide. It has the design benefits of being oversized and wide, but also the practical benefits of threads.

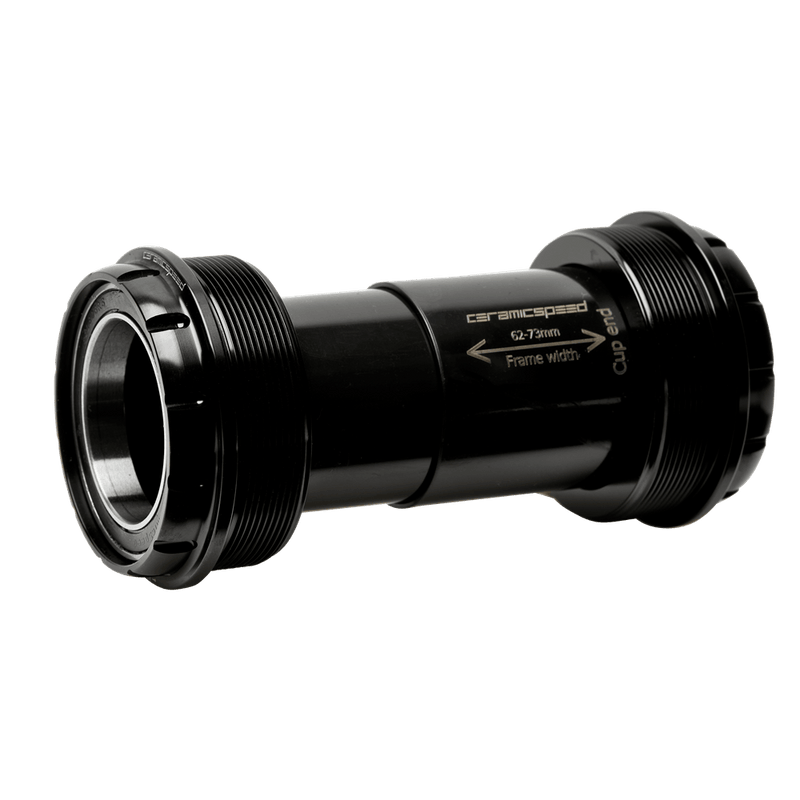

This kit pairs those bb’s with 30mm spindle cranks. The cups have CeramicSpeed bearings pressed in. There are two bearing options. The Standard Bearing has CeramicSpeed Balls and hardened-steel races. The Coated Bearing has the same balls running on a 3-micron thick coating placed on top of those hardened-steel races for greater durability and less friction still.
This BB is compatible with 68mm frames.
Bottom Bracket tool for installation: BBT-79.
In The Box
- 2 cups with bearings installed.
- 2 1mm spacers.
- 2 0.5mm spacers.
- 2 dust covers.
- O-ring.
- Spacer tube.
- 10ml syringe All Round Grease.
- Sticker sheet.
Technical Data
With the benefits of both oversized shells and the tight fit of threading, T47 has the best of both worlds. These cups and bearings make it possible to run stiff and light 30mm spindle cranks, like those from Rotor and FSA’s 386EVO standard.
Standard Bearings reduce drag by 75% versus stock bottom brackets, dropping down to 0.3-0.4 watts per set. This is the result of hardened-steel races rolling ceramic balls that are 100% smoother and 15% harder than the ceramic competition. They also last longer.
Coated Bearings feature an even longer lifespan and even lower drag. Life increases by 60% and drag drops by 50% compared to our Standard.
Applied to the bearings at the factory is All Round Grease. It can be replaced for lower drag TT and Track Grease, or higher durability LongLife Grease, which adds a bit of drag but stays in when riding through messy conditions.
This BB is compatible with 68mm frames.
>> Installation of a CeramicSpeed threaded BB <<
