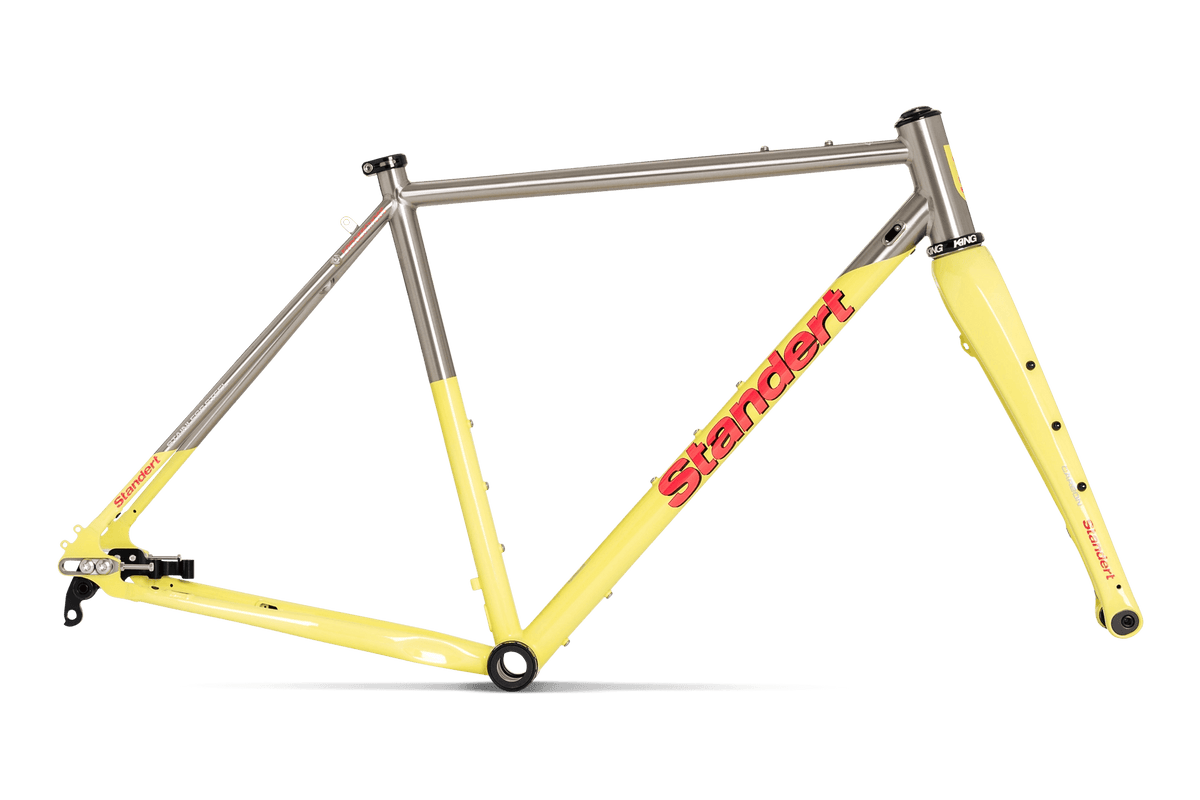

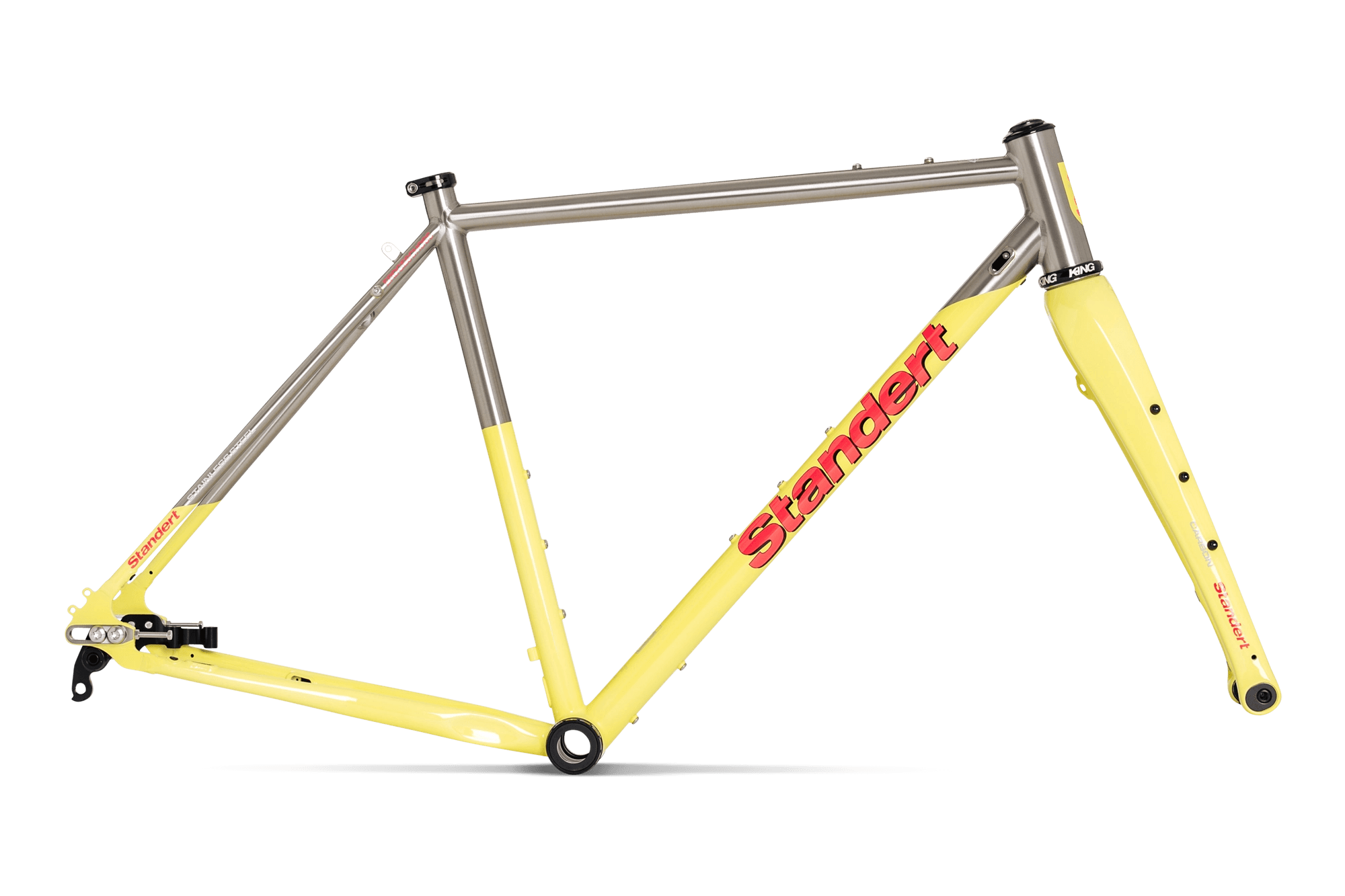

Configure your Erdgeschoss Stainless | Frameset | Yeah! Yellow
Frame
Standert Erdgeschoss Stainless
Fork
Columbus Cross+ Carbon 1⅛"–1½"
Headset
Chris King Inset 7
Bottom Bracket
Standert T47
Thru Axles
Front 12x100; Rear 12x142
Seatpost Clamp
30.0mm
Seatpost Diameter
27.2mm
Front Derailleur Clamp Diameter
30.0mm
Max. Tire Clearance
650bx54mm; 700cx50mm (Measured width)
Ready for
1x, 2x, Di2, eTap, EPS
Weight
Frame (54cm) 1980g; Fork 500g
Max. Tire Clearance
650b x 50mm ; 700c x 50mm (Measured width)
Add-Ons
Price for current setup
Erdgeschoss Stainless | Frameset | Yeah! Yellow
Size
not set
Framesets ship in 4 weeks. All frames require some work and are prepared to order by our in-hous team of mechanics.
Geometry
48PC™
50PC™
52PC™
54
56
58
60
A
Seat Tube Length
460
480
500
520
540
560
580
B
Top Tube Length
500
520
530
545
560
575
585
C
Head Tube Length
89
100
110
122
138
160
180
D
Seat Tube Angle
76.5
75.5
75
74
73.5
73
73
E
Head Tube Angle
71.25
71.25
71.5
71.5
72
72
72.5
F
Stack
519
529
539
551
568
589
610
G
Reach
373
381
384
386
391
394
398
H
Chainstay Length
425
425
425
425
425
425
425
I
Wheelbase
996
1008
1012
1018
1024
1034
1039
J
Standover Heighter
746
760
774
789
805
826
846
Size Guide
A
Body Height (cm)
B
Inseam (cm)
Frame Size
150
-
163
75
-
82
48PC™
158
-
170
76
-
83
50PC™
166
-
177
76
-
83
52PC™
170
-
180
79
-
86
54
175
-
185
81
-
88
56
182
-
192
83
-
91
58
188
-
198
85
-
94
60
regular fit
race fit
regular fit
race fit
Shipping
Destination
Costs
€30
Time
1-3 Weeks
All in-stock and available products are subject to processing & shipping times stated here. Every frame is hand-prepared in our Berlin warehouse. All orders undergo careful preparation, including: facing & reaming bearing surfaces, chasing threads, installing small parts, and thorough quality control. We promise it’s worth the wait.
