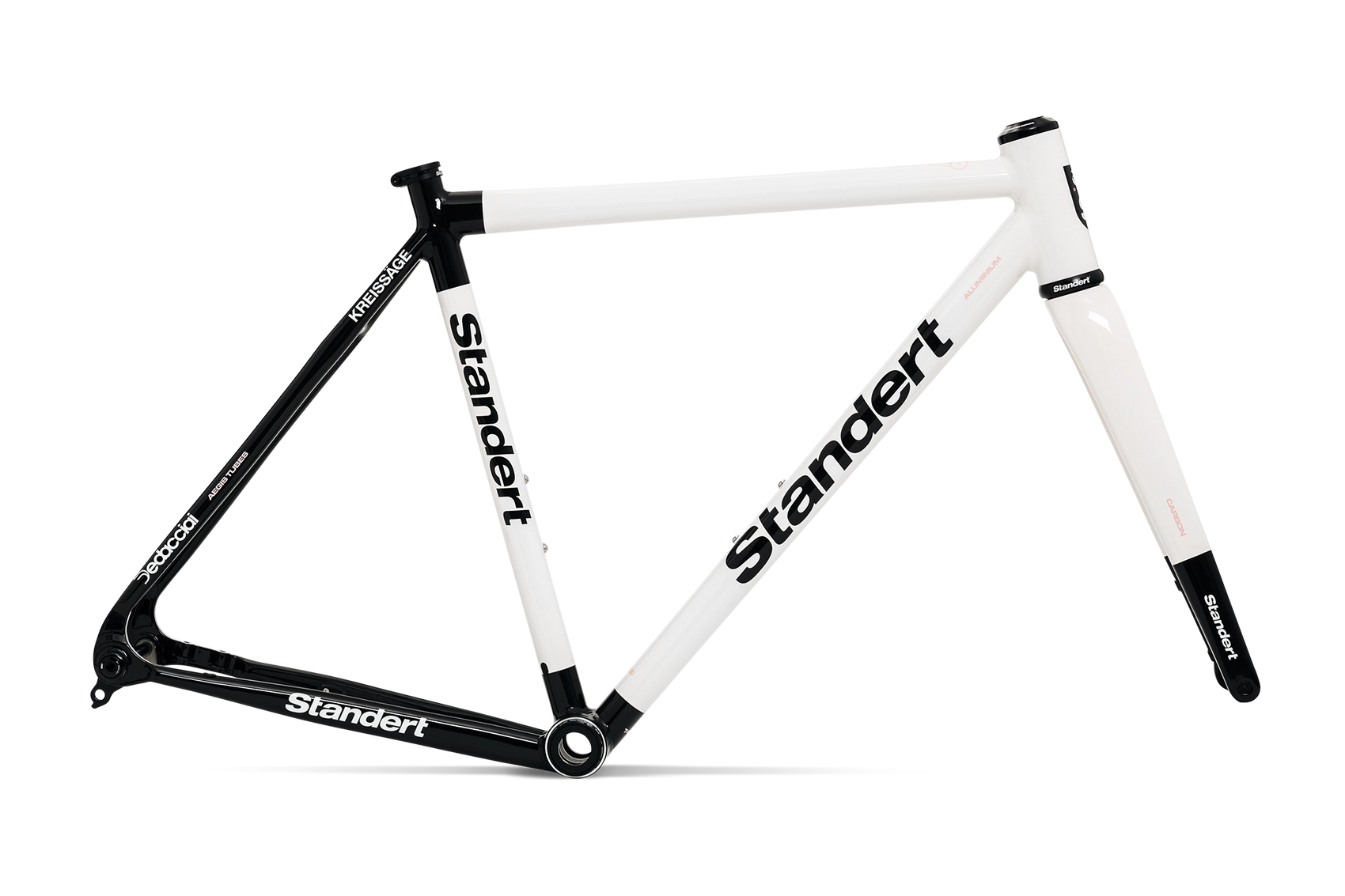

Configure your Kreissäge | Frameset | Yang White MY24
Frame
Standert Kreissäge RS
Fork
Standert integrated tapered full carbon flat mount
Headset
Standert Integrated
Bottom Bracket
Standert T47
Seatpost Clamp
31.8mm
Through Axles
Front 12x100, rear 12x142
Seatpost Diameter
27.2mm
Front Derailleur Clamp Diameter
31.8mm
Max. Tire Clearance
700x30c
Recom. max. system weight
105 kg
Weight
Frame (size 54) 1360g, Fork 400g
Add-Ons
Price for current setup
Kreissäge | Frameset | Yang White MY24
Size
not set
Stock incoming. Frames will start shipping from the 1st week of June 2024. All frames require some work and are prepared to order by our in-house team of mechanics.
Geometry
48 PC™
50 PC™
52 PC™
54
56
58
60
A
Seat Tube Length
480
490
500
530
550
571
586
B
Top Tube Length
495
512
525
544
555
570
586
C
Head Tube Length
110
115
120
130
145
166
181
D
Seat Tube Angle
76.5
76
75.5
74
73.5
73.5
73.5
E
Head Tube Angle
71.25
72.5
73
73
73.5
73.5
73.5
F
Stack
521
530
537
544
560
580
595
G
Reach
370
380
386
388
390
398
410
H
Chainstay Length
405
405
405
410
410
410
410
I
Wheelbase
969
970
974
984
986
1000
1016
J
Standover Height
741
745
758
778
794
816
830
Size Guide
A
Body Height (cm)
B
Inseam (cm)
Frame Size
150
-
163
76
-
82
48 PC™
158
-
170
77
-
83
50 PC™
166
-
177
78
-
84
52 PC™
170
-
180
80
-
86
54
175
-
185
82
-
88
56
182
-
192
84
-
90
58
188
-
198
85
-
91
60
regular fit
race fit
regular fit
race fit
Shipping
Destination
Costs
€30
Time
1-3 Weeks
All in-stock and available products are subject to processing & shipping times stated here. Every frame is hand-prepared in our Berlin warehouse. All orders undergo careful preparation, including: facing & reaming bearing surfaces, chasing threads, installing small parts, and thorough quality control. We promise it’s worth the wait.
