Here it is. Our first full-performance cyclocross bike. The Stichsäge.

CX, Cyclocross, Cross…no matter what you call it, it’s where the often very formal sport of cycling rips off its shirt to get rowdy & dirty. That’s one of the reasons why we love cyclocross. The lines between disciplines are blurring. The strict rules about which discipline can be ridden in which season are becoming a thing of the past. We’ve given into our urge to ride cross all year, whenever we feel like it.

The Stichsäge is made from scandium aluminum and is our first bike with fully integrated cabling. This makes it not just look cleaner, but also a joy to clean after some dirty riding. Handmade and painted in Italy.

According to regulations, cyclocross bikes must have 33mm tires, but knowing that you might use the Stichsäge for more than just licensed racing, it can fit up to 40mm tires.
- • Fully internal cable routing
- • Custom T47 bb shell with machined inside for optimized weight and space for internal cable routing
- • Tire clearance to fit up to 40mm tires (actual width)

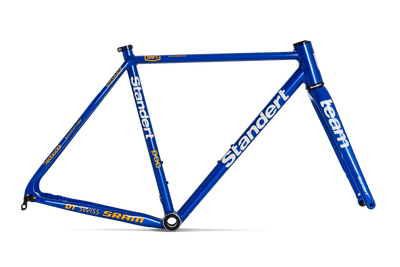

- • High end Scandium Aluminium frame with full carbon fork
- • Race proven geometry for superior pedaling efficiency and handling
- • Engineered in Berlin, Made in Italy
Shop Stichsäge online or visit us in Berlin.

FACT SHEETS

*Image shows size 54 with Rival eTap AXS 1X setup

$SECTION_IMAGE

$SECTION_DISCOVER

98;42;stichsaege-complete-leaping-lilac-front-diagonal
88;30;stichsaege-complete-leaping-lilac-front
3;42;stichsaege-complete-leaping-lilac-back-diagonal
85;18;stichsaege-complete-leaping-lilac-handlebars
84;25;stichsaege-complete-leaping-lilac-handlebars-side
57;35;stichsaege-complete-leaping-lilac-frame-crop
44;78;stichsaege-complete-leaping-lilac-crankset
26;16;stichsaege-complete-leaping-lilac-saddle-1
35;80;stichsaege-complete-leaping-lilac-groupset
30;30;stichsaege-complete-leaping-lilac-back-crop
35;40;stichsaege-complete-leaping-lilac-engineered-in-berlin
65;15;stichsaege-frameset-leaping-lilac-lucky-cat
19;53;stichsaege-complete-leaping-lilac-hub-rear
80;53;stichsaege-complete-leaping-lilac-hub-front
77;44;stichsaege-complete-leaping-lilac-tire

$SECTION_QUOTE

$SECTION_SPECS

Stem;stem;Deda Superbox DCR
Handlebar;handlebar;Deda Superzero DCR Alloy
Handlebar Tape / Grips;handlebar-tape-grips;Fizik
Shift / Brake Levers;shift-brake-levers;Sram Rival eTap AXS HRD
Brake Front;brake-front;Sram Rival AXS HRD, Paceline 140mm Rotor
Brake Rear;brake-rear;Sram Rival AXS HRD, Paceline 140mm Rotor
Derailleur Front;derailleur-front;-
Derailleur Rear;derailleur-rear;Sram Rival eTap AXS
Cassette;cassette;Sram Rival eTap AXS XG-1250 10-36
Chain;chain;Sram Rival eTap AXS
Crankset;crankset;Sram Force 1 DUB 40t
Saddle;saddle;Fizik Vento Argo R3
Seatpost;seatpost;Zipp Service Course SL Beyond Black, Carbon

Frame;frame;Standert Stichsäge
Fork;fork;Standert full carbon integrated tapered 1 1/8"-1 1/2" flat mount
Colors;colors;Team, Leaping Lilac
Sizes;sizes;48 Project Compact™, 50 Project Compact™, 52 Project Compact™, 54, 56, 58, 60
Weight;weight-kg; Complete (Size 54) 8,0 kg
Max. Tire Clearance;max.-tire-clearance;700x40mm (actual width)
Recom. max. rider weight;recom.-max.-rider-weight;95 kg
; ;
Headset;headset;Standert/Deda Integrated
Bottom Bracket;bottom-bracket;First T47
; ;
Wheelset;wheelset;DT Swiss CRC 1400 Spline Disc
Tires;tires;Challenge Grifo TLR 33mm

$SECTION_GEOMETRY 48 PC™;50 PC™;52 PC™;54;56;58;60
a;Seat Tube Length;480;490;520;545;560;575;590
b;Top Tube Length;495;510;520;540;555;565;580
c;Head Tube Length;108;113;123;133;142;158;172
d;Seat Tube Angle;76.5;76;75.5;74;73.5;73.5;73.5
e;Head Tube Angle;70;70.5;71;71.5;72;72;72
f;Stack;523;529;538;549;560;574;588
g;Reach;366;375;379;381;388;394;405
h;Chainstay Length;425;425;425;425;425;425;425
i;Wheelbase;1001;1008;1011;1012;1019;1029;1044
j;Standover Height;755;762;784;800;812;827;841
k;BB Drop;68;68;65;65;65;65;65
l;Crankset;165;170;170;170;172.5;172.5;172.5
m;Stem;90;90;100;110;110;120;120
n;Handlebar Width (o-o);40;40;40;42;42;42;44
o;Seatpost;0;0;0;0;20;20;20

$SECTION_SIZING Body Height;cm;Inseam;cm;Frame Size
150;163;76;82;48 PC™
158;170;77;83;50 PC™
166;177;78;84;52 PC™
170;180;80;86;54
175;185;82;88;56
182;192;84;90;58
188;198;85;91;60
regular fit;race fit;regular fit;race fit
