Demo | Pfadfinder | LTD IV | Force AXS D1 | 56

4,399.00 EUR

5,499.00 EUR

price without VAT: 3,696.64 EUR

Size
56

Specs

Add-ons

Geometry

Size Guide

Shipping

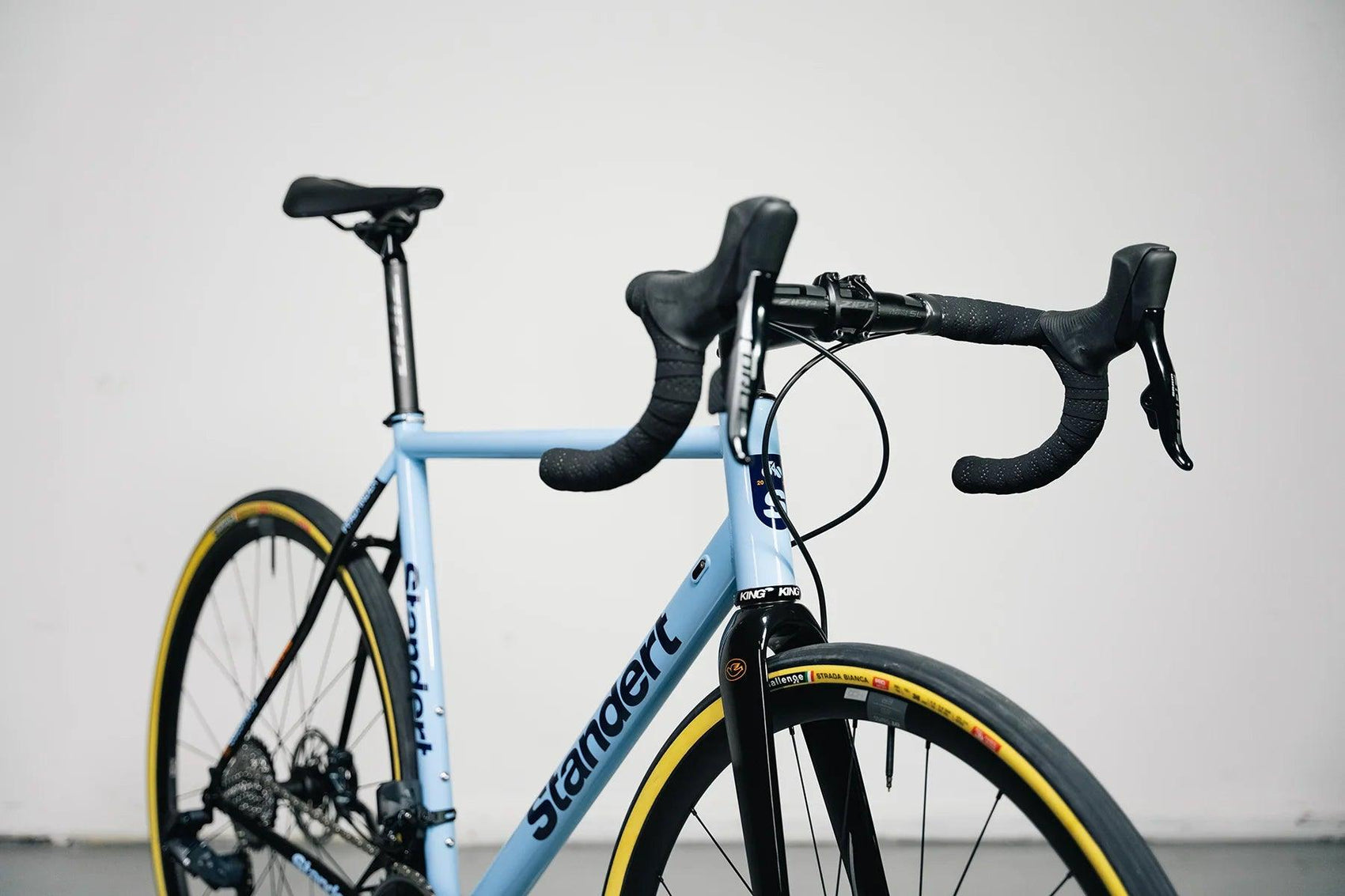

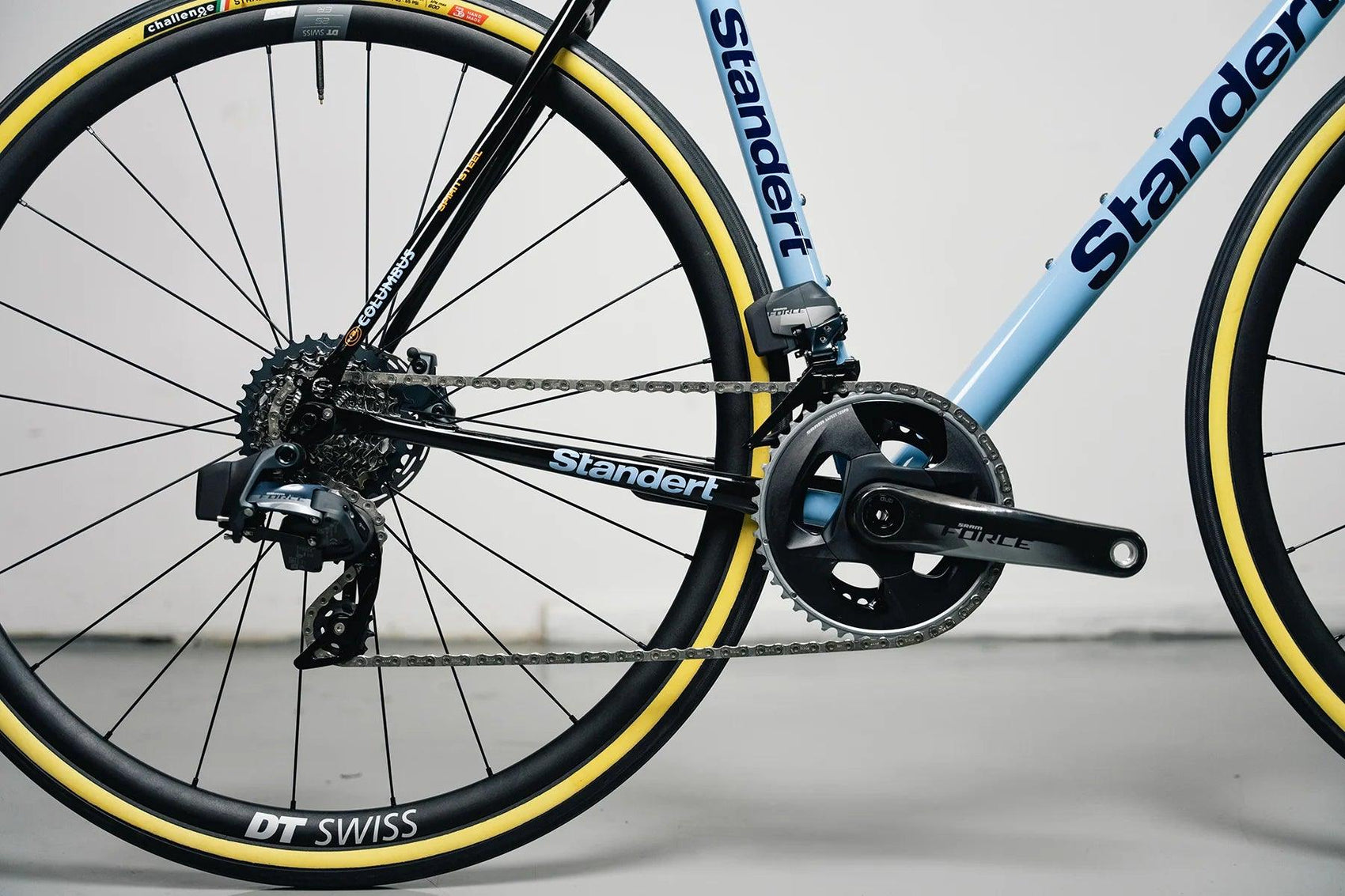

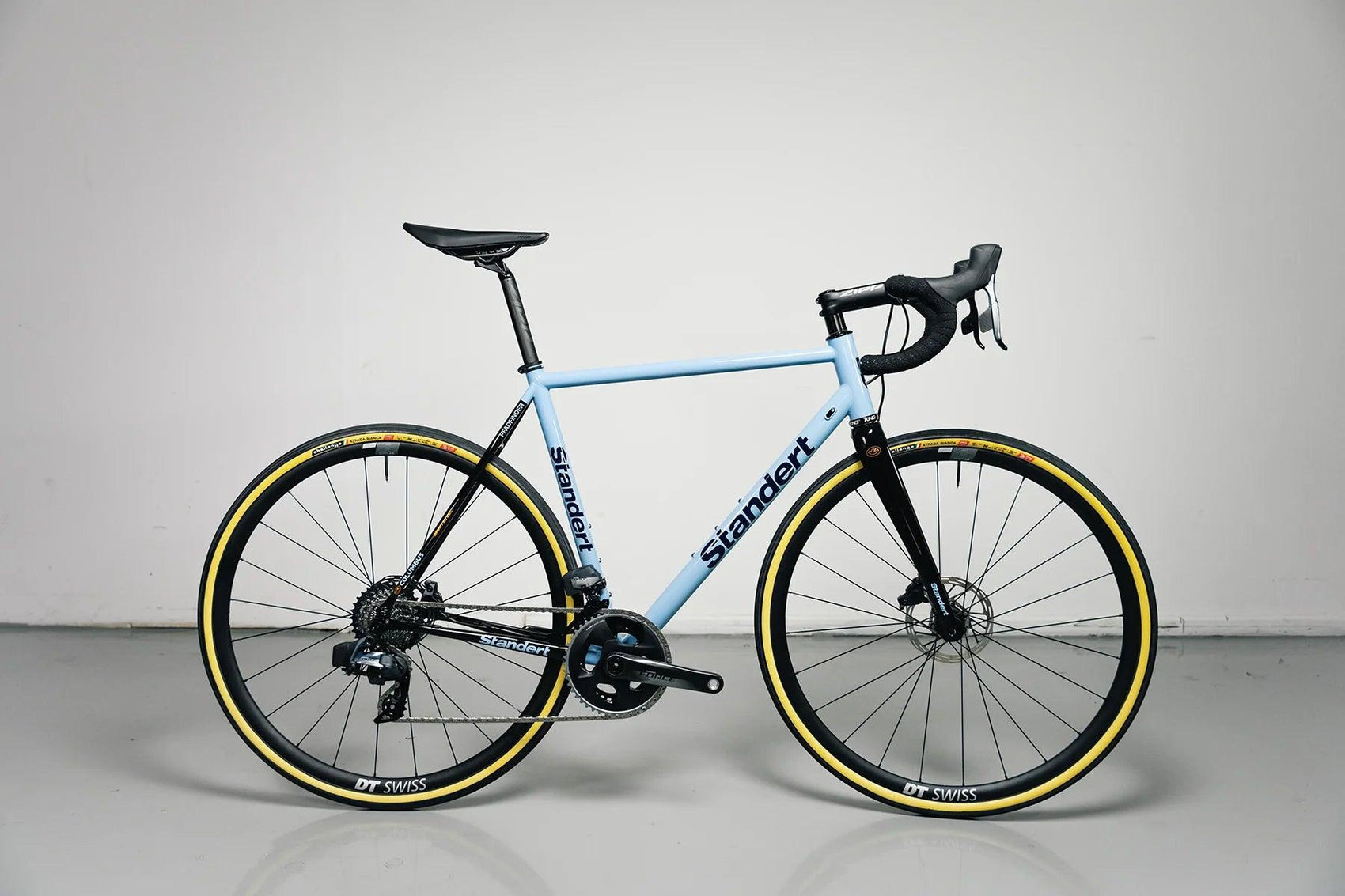

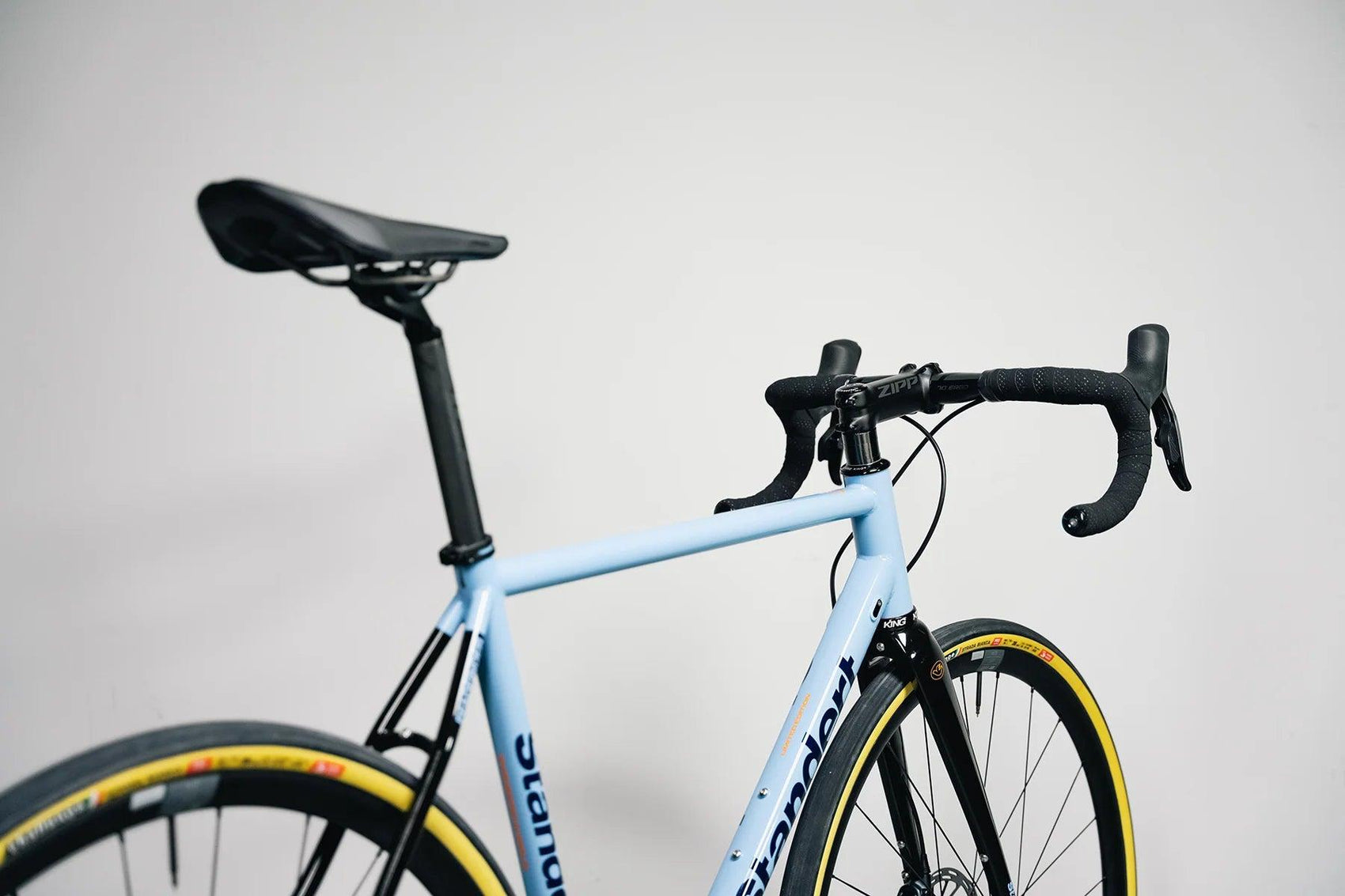

The Pfadfinder LTD IV is an endurance road bike made for all roads and all styles. It’s quick and sporty with a well balanced geometry between agility and comfort. The frame is made from high-end Columbus steel tubing for stiffness and compliance. With tyre clearance for up to 700x38c you're left with plenty of room for all roads.

*Minimal signs of usage may appear on all the Demo bikes as they have been displayed in our showroom.

Specs

Shifter
Sram Force eTap AXS D1

Brakes
Sram Force eTap AXS D1

Front Derailleur
Sram Force eTap AXS D1

Rear Derailleur
Sram Force eTap AXS D1 - max. 33t

Crankset
Sram Force eTap AXS D1 - 172.5mm - 46/33

Cassette
Sram Force eTap AXS D1 1270 - 10-33

Chain
Sram Force eTap AXS 1270

Brake Rotors
Sram Paceline Rotor - 140mm rear
160mm front

Frame
Stander Pfadfinder - LTD IV

Fork
Columbus Futura Gravel

Headset
Chris King i8 Black

Seatpost
Zipp Service Course SL 400mm - 20mm Setback

Handlebar
Zipp Service Course SL70 Ergo - 40cm

Stem
Zipp Service Course SL - 120mm

Saddle
Fizik Tempo Argo R3 150mm

Wheelset
DT Swiss ER 1400 25mm

Tires
Challenge Strada Bianca 36mm - Tanwall

Geometry

48 PC
50 PC
52 PC
54
56
58
60
A
Seat Tube Length
480
495
510
530
550
570
585
B
Top Tube Length
500
514
526
543
561
575
590
C
Head Tube Length
98
108
118
131
148
164
177
D
Seat Tube Angle
76
75
74.5
74
73.5
73.5
73.5
E
Head Tube Angle
71.25
71.5
71.5
72.25
73.25
73.25
73.25
F
Stack
520
530
540
555
575
590
605
G
Reach
368
370
375
383
390
400
411
H
Chainstay Length
415
415
415
415
415
415
415
I
Wheelbase
979
983
991
997
1000
1015
1030
J
Standover Height
743
758
767
789
808
819
834

Size Guide

A
Body Height (cm)
B
Inseam (cm)
Frame Size
150
-
163
75
-
82
48 PC
158
-
170
76
-
83
50 PC
166
-
177
77
-
84
52 PC
170
-
180
79
-
86
54
175
-
185
81
-
88
56
182
-
192
83
-
91
58
188
-
196
90
-
97
60
regular fit
race fit
regular fit
race fit
Shipping
Destination
Costs
€120
€190
€420
€590
€350
Custom Quote
Time
2-4 Weeks
2-4 Weeks
3-5 Weeks
3-5 Weeks
3-6 Weeks
3-6 Weeks
All in-stock and available products are subject to processing & shipping times stated here. Every frame is hand-prepared in our Berlin warehouse. All orders undergo careful preparation, including: facing & reaming bearing surfaces, chasing threads, installing small parts, and thorough quality control. We promise it’s worth the wait.
